CMAX-OMF7-43-UWI53

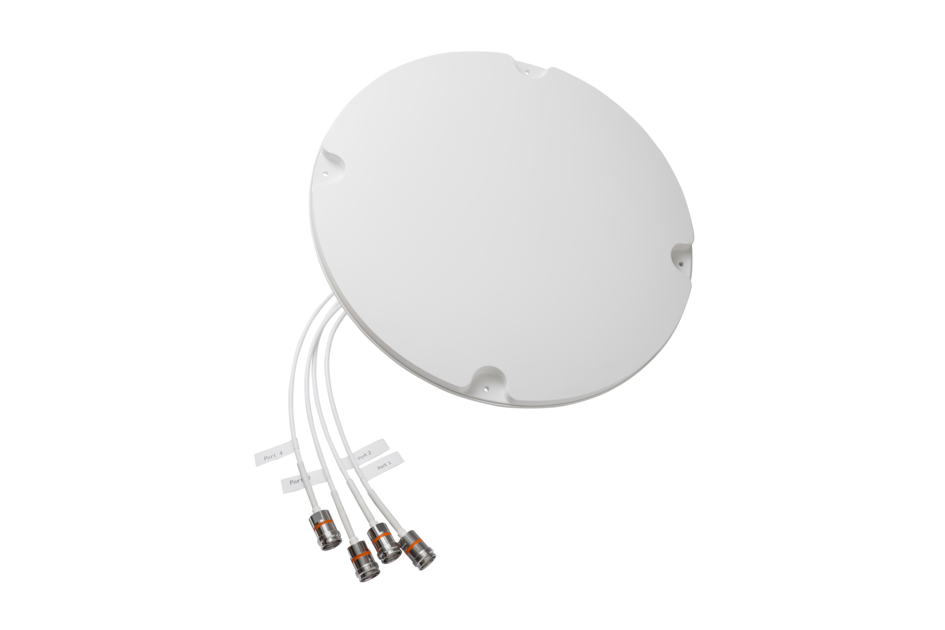

Cell-Max™ Low PIM 4x4 Omni MIMO In-building Antenna, 617-6000 MHz
Specifications
Product Classification
Product Type | In-building antenna |
Product Brand | Cell-Max™ |
General Specifications
Application | Indoor |
Antenna Type | Omni |
Antenna Array Characteristic | MIMO 4x4 |
Polarization | Linear Horizontal |
Color | White (RAL 9016) |
Mounting | Thru-hole ceiling mount (optional) |
Mounting Note | For antenna installation on metal ceilings, please contact your local CommScope representative |
Number of Ports | 4 |
Pigtail Cable | 670-141SXE, plenum rated |
Radome Material | ASA+PC, UV stabilized |
RF Connector Interface | 4.3-10 Female |
Dimensions
Height | 24 mm | 0.945 in |
Pigtail Length | 500 mm | 19.685 in |
Outer Diameter | 361 mm | 14.213 in |
Electrical Specifications
Impedance | 50 ohm |
Operating Frequency Band | 617 – 698 MHz | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz | 4800 – 6000 MHz |
Electrical Note | Values typical, unless otherwise stated |
Electrical Specifications
Frequency Band, MHz | 617–698 | 698–960 | 1695–2700 | 3300–4200 | 4800–6000 |
Gain, dBi | 3.3 | 3.9 | 5.4 | 5.5 | 8.1 |
Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 |
Isolation, Cross Polarization, dB | 17 | 17 | 20 | 30 | 30 |
PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | |
Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 | 100 |
Return Loss/VSWR
Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
617–698 MHz | 1.785 | 11.0 | 1.671 | 12.0 |
698–960 MHz | 1.725 | 11.5 | 1.499 | 14.0 |
1695–2700 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
3300–4200 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
4800–6000 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
Environmental Specifications
Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
Relative Humidity | Up to 100% |
Packaging and Weights
Width, packed | 380 mm | 14.961 in |
Depth, packed | 157 mm | 6.181 in |
Length, packed | 407 mm | 16.024 in |
Weight, gross | 1.7 kg | 3.748 lb |
Weight, net | 1 kg | 2.205 lb |
Regulatory Compliance/Certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
UK-ROHS | Compliant |
