EPX-PANELS

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

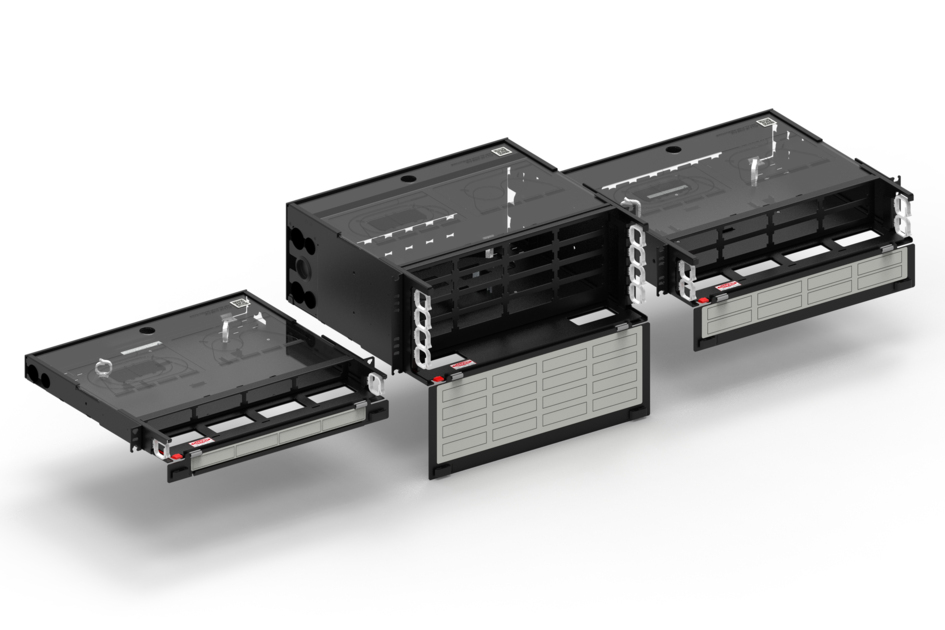

EPX Fiber Optic Panel available in either G2 or LGX/PNL 1U, 2U or 4U fixed or sliding configurations

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of EPX-PANELS by selecting options

Product	Total Fibers, quantity	Regional Availability	Portfolio	Product Series	Product Type	Interface, front	Rack Type	Rack Units	Intelligence Type	Shelf Movement
760241517 \| EPX-1U-MOD-OPEN-F-FX (AGL-1U-FX) EPX 1U fixed panel, accepts (4) G2 modules or adapter packs providing up to 48 duplex LC or 32 MPO ports Specifications		Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Fixed
760241518 \| EPX-1U-MOD-OPEN-F-ANG-FX (AGL-1U-ANG-FX) EPX 1U fixed angled panel, accepts (4) G2 modules or adapter packs providing up to 48 duplex LC or 32 MPO ports Specifications		Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Fixed
760242454 \| EPX-1U-MOD-OPEN-ANG (AGL-1U-ANG-SL) EPX 1U angled sliding panel, accepts (4) G2 modules or adapter packs providing up to 48 duplex LC or 32 MPO ports Specifications		EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Sliding
760242455 \| EPX-1U-MOD-DRW (AGL-1U-DRW-SL) EPX 1U sliding drawer panel, accepts (4) G2 modules or adapter packs providing up to 48 duplex LC or 32 MPO ports Specifications		Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Sliding
760249997 \| EPX-1U-PNL-ENC EPX 1U sliding panel, accepts (3) LGX/PNL style splice cassettes, modules or panels, providing up to 36 duplex LC ports Specifications	72	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel \| Fiber patch/splice panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Sliding
760249998 \| EPX-1U-MOD-ENC EPX 1U sliding panel, accepts (4) G2 style splice cassettes, modules or adapter packs, providing up to 48 duplex LC ports Specifications	96	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel \| Fiber patch/splice panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Sliding
760251042 \| EPX-1U-MOD-ENC-FX EPX 1U fixed panel, accepts (4) G2 style splice cassettes, modules or adapter packs, providing up to 48 duplex LC ports Specifications	96	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel \| Fiber patch/splice panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Fixed
760251043 \| EPX-1U-PNL-ENC-FX EPX 1U fixed panel, accepts (3) LGX/PNL style splice cassettes, modules or panels, providing up to 36 duplex LC ports Specifications	72	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	EPX	Fiber patch panel \| Fiber patch/splice panel	Unloaded	EIA 19 in	1	Not iPatch® ready	Fixed

Features and Benefits

CommScope’s EPX Fiber panels are a flexible solution which allows interchangeable MPO modules, adapter packs and splice cassettes, including in-panel splicing using splice trays

Compact, lightweight panel designed for operational simplicity
Flexible solution which allows interchangeable MPO modules, adapter packs and splice cassettes, including in-panel splicing using splice trays
Options available with legacy G2 or LGX/PNL compatibility

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber patch panel \| Fiber patch/splice panel
Product Series	EPX

General Specifications

Color	Black
Intelligence Type	Not iPatch® ready

Dimensions

Width	482.6 mm \| 19.000 in
Depth	412.75 mm \| 16.250 in

Environmental Specifications

Safety Standard

CSA 22.2 | UL 1863

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber patch panel \| Fiber patch/splice panel
Product Series	EPX
