760242853 | MFPS-IHD-P-PMS1-144

Base Product: MFPS-PANELS

Available in:
EMEA

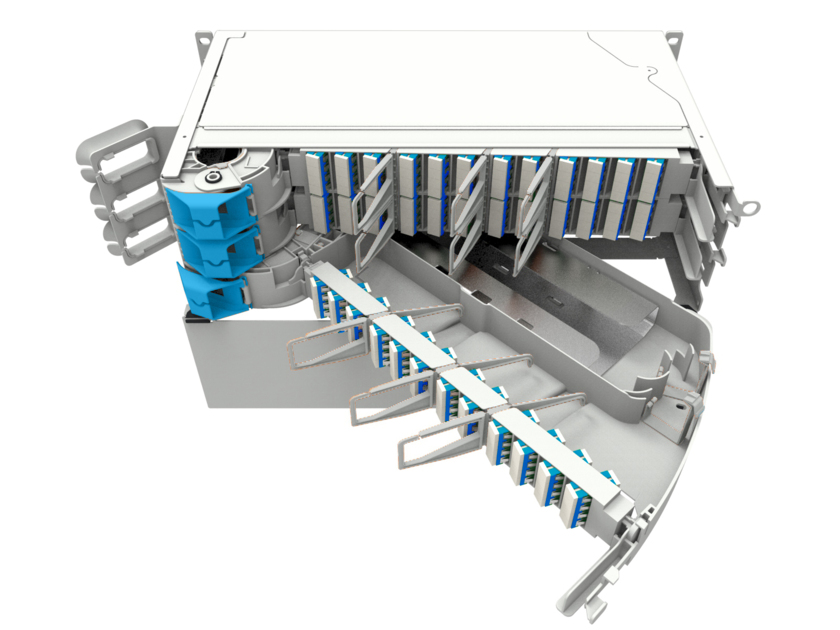

MFPS Fiber Optic panel, 3RU, 48 fibers/RU, patch/patch, front patch cords orientation to the left, 144 SC/UPC

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Suitable for cabinets and POP locations
Various available panel heights to support termination counts from 12 to 288
Simple wrap-around design for easy fiber routing
Supports path cord diameters of 1.2 to 2.4mm (XD-series require the usage of 1.2mm patch cords)

Specifications

Product Classification

Regional Availability	EMEA
Portfolio	CommScope®
Product Type	Fiber patch panel
Product Series	MFPS

General Specifications

Functionality	Patching
Color	Gray
Door Type, front	Compression latch \| Hinged
Interface, front	SC/UPC
Patch Cord Entry Location	Front, left side
Patch Cord Routing	Left sided
Rack Type	EIA 19 in \| ETSI 600 mm
Rack Units	3
Shelf Movement	Hinged
Total Ports, quantity	144
Transmission Standards	ETSI EN 300 019-1-3 \| IEC 61300-3-34

Dimensions

Height	125 mm \| 4.921 in
Width	482.6 mm \| 19 in
Depth	279.91 mm \| 11.02 in

Port Configuration

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Finish	Powder coated
Material Type	Ethylene-propylene (EP) \| Polyethylene terephthalate (PET)

Optical Specifications

Fiber Mode

Singlemode

Environmental Specifications

Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-20 °C to +85 °C (-4 °F to +176 °F)
Flammability Rating	UL 94 V-0

Packaging and Weights

Included	Mounting hardware
Packaging quantity	1

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant/Exempted

Product Classification

Regional Availability	EMEA
Portfolio	CommScope®
Product Type	Fiber patch panel
Product Series	MFPS

General Specifications

Functionality	Patching
Color	Gray
Door Type, front	Compression latch \| Hinged
Interface, front	SC/UPC
Patch Cord Entry Location	Front, left side
Patch Cord Routing	Left sided
Rack Type	EIA 19 in \| ETSI 600 mm
Rack Units	3
Shelf Movement	Hinged
Total Ports, quantity	144
Transmission Standards	ETSI EN 300 019-1-3 \| IEC 61300-3-34

Dimensions

Height	125 mm \| 4.921 in
Width	482.6 mm \| 19 in
Depth	279.91 mm \| 11.02 in

Material Specifications

Finish	Powder coated
Material Type	Ethylene-propylene (EP) \| Polyethylene terephthalate (PET)

Optical Specifications

Fiber Mode

Singlemode

Environmental Specifications

Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-20 °C to +85 °C (-4 °F to +176 °F)
Flammability Rating	UL 94 V-0

Packaging and Weights

Included	Mounting hardware
Packaging quantity	1

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant/Exempted
