760243059 | OCP-SH-02MASEN-XX-(12COL)

Base Product: OCP

  • Available in:
  • EMEA

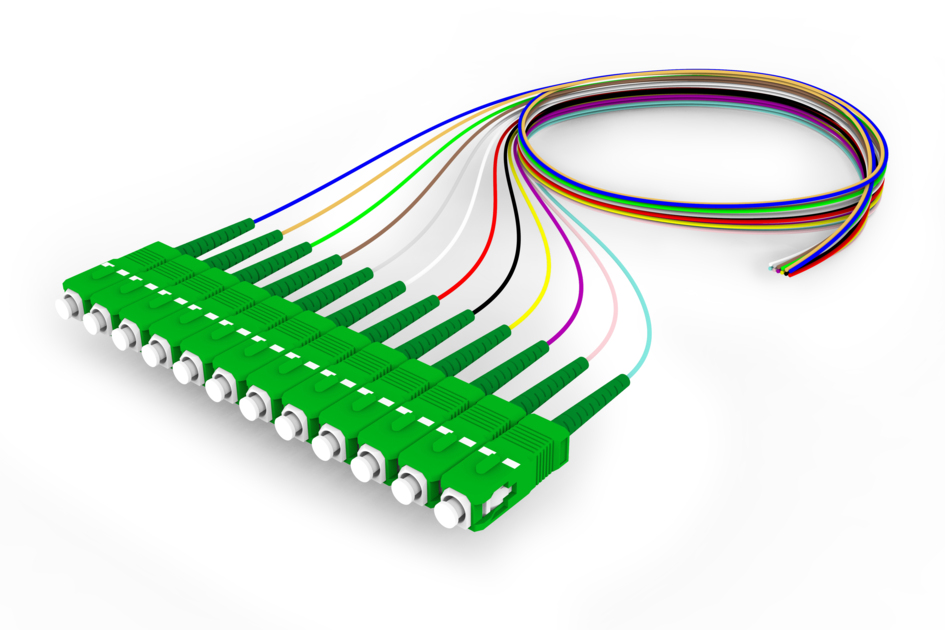

Fiber Optic Pigtail, Simplex, Singlemode, SC/APC to Stub, 0.9 mm diameter, multicolor, 2 m

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Semi-tight cable stripping performance: 2 meter in steps of min. 30cm (in one operation). Applied force to remove each section is 10 N.

Product Classification

Regional Availability EMEA
Product Type Fiber pigtail, multi-fiber
Product Series OCP

General Specifications

Connector A, quantity 12
Color, boot A Green
Color, connector A Green
Interface, Connector A SC/APC
Total Fibers, quantity 12

Dimensions

Cord Length 2 m | 6.562 ft

Ordering Tree

Click on image to enlarge.

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A1, TeraSPEED®

Environmental Specifications

Environmental Space Low Smoke Zero Halogen (LSZH)

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Product Classification

Regional Availability EMEA
Product Type Fiber pigtail, multi-fiber
Product Series OCP

General Specifications

Connector A, quantity 12
Color, boot A Green
Color, connector A Green
Interface, Connector A SC/APC
Total Fibers, quantity 12

Dimensions

Cord Length 2 m | 6.562 ft

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A1, TeraSPEED®

Environmental Specifications

Environmental Space Low Smoke Zero Halogen (LSZH)

Packaging and Weights

Packaging quantity 1
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
