760242345 | SFC-LCAF-UNV-8X QWIK II™ LC
Base Product: QWIK-II
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

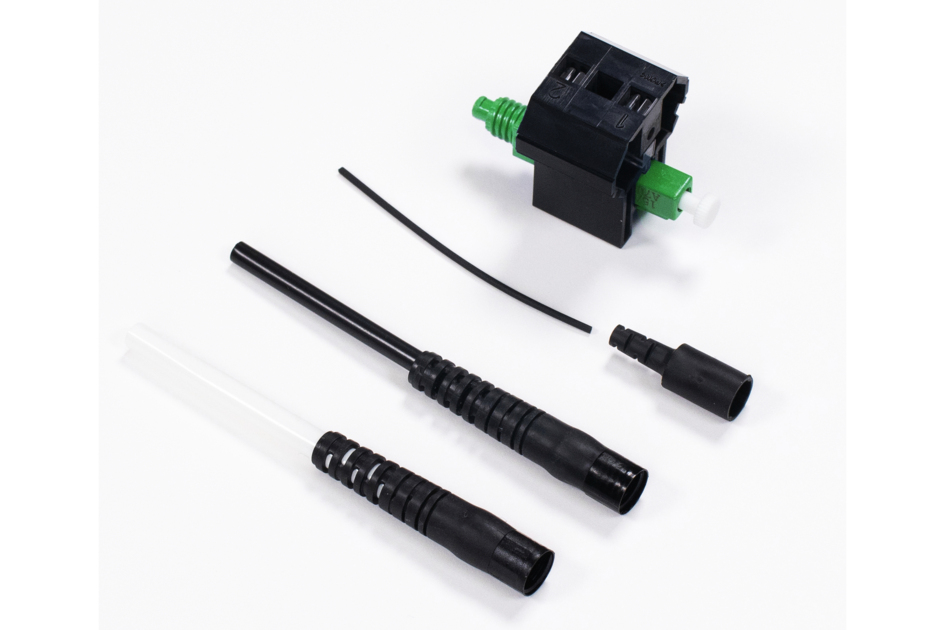

Qwik II® Field Installable LC Connector, Singlemode-APC, Green, for 0.25/0.9/2.0/3.0 mm, single pack
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber connector |
| Product Brand | Qwik II® | TeraSPEED® |
| Product Series | Qwik II |
General Specifications
| Body Style | Universal |
| Color, boot | Black |
| Color, housing | Green |
| Ferrule Geometry | Factory polished |
| Interface | LC/APC |
| Interface Feature | Field Installable | Mechanical splice |
Dimensions
| Compatible Cable Diameter | 0.25 mm | 0.010 in | 0.9 mm | 0.035 in | 2 mm | 0.079 in | 3 mm | 0.118 in |
Material Specifications
| Ferrule Material | Zirconia |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | OS2 |
| Insertion Loss, maximum | 0.6 dB |
| Insertion Loss, typical | 0.3 dB |
| Return Loss, minimum | 50 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber connector |
| Product Brand | Qwik II® | TeraSPEED® |
| Product Series | Qwik II |
General Specifications
| Body Style | Universal |
| Color, boot | Black |
| Color, housing | Green |
| Ferrule Geometry | Factory polished |
| Interface | LC/APC |
| Interface Feature | Field Installable | Mechanical splice |
Dimensions
| Compatible Cable Diameter | 0.25 mm | 0.010 in | 0.9 mm | 0.035 in | 2 mm | 0.079 in | 3 mm | 0.118 in |
Material Specifications
| Ferrule Material | Zirconia |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | OS2 |
| Insertion Loss, maximum | 0.6 dB |
| Insertion Loss, typical | 0.3 dB |
| Return Loss, minimum | 50 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Documentation & Downloads
Building Information Modeling (BIM) Objects
Installation Instruction
Product Specification
Video
Qwik II Termination with 900um Fiber - 760248225
Qwik II Termination with 900um Fiber - 760248225
Qwik II Termination with Premium Toolkit and 2-3mm Cable - 760248225
Qwik II Termination with Premium Toolkit and 250um Fiber - 760248225
Qwik II Termination with Premium Toolkit and 900um Fanout/Breakout Fiber - 760248225
Warranty
Building Information Modeling (BIM) Objects
Installation Instruction
Product Compliance Documentation
Product Specification
Video
Qwik II Termination with 900um Fiber - 760248225
Qwik II Termination with 900um Fiber - 760248225
Qwik II Termination with Premium Toolkit and 2-3mm Cable - 760248225
Qwik II Termination with Premium Toolkit and 250um Fiber - 760248225
Qwik II Termination with Premium Toolkit and 900um Fanout/Breakout Fiber - 760248225
Warranty
Related Products and Accessories
Related Products
Connectors
-
![]()
760243081 Qwik II® Duplex Clip LC (Pack of Six)
-
![]()
760117887 | MFC-LCF-09-5X QWIK II™ LC Qwik II® Field Installable LC Connector, OM3/4/5, Aqua, for 250/900um, single pack -
![]()
760117895 | SFC-LCF-09-8X QWIK II™ LC Qwik II® Field Installable LC Connector, Singlemode-UPC, Blue, for 250/900um, single pack -
![]()
760117903 | MFC-LCF-09-6X QWIK II™ LC Qwik II® Field Installable LC Connector, OM1, Beige, for 250/900um, single pack -
![]()
760117911 | MFC-LCF-09-5X-25 QWIK II™ LC Qwik II® Field Installable LC Connector, OM3/4/5, Aqua, for 250/900um, 25 per pack -
![]()
760117929 | SFC-LCF-09-8X-25 QWIK II™ LC Qwik II® Field Installable LC Connector, Singlemode-UPC, Blue, for 250/900um, 25 per pack -
![]()
760117937 | MFC-LCF-09-6X-25 QWIK II™ LC Qwik II® Field Installable LC Connector, OM1, Beige, for 250/900um, 25 per pack -
![]()
760117945 | MFC-SCF-09-5X QWIK II™ SC Qwik II® Field Installable SC Connector, OM3/4/5, Aqua, for 250/900um, single pack -
![]()
760117952 | SFC-SCF-09-8X QWIK II™ SC Qwik II® Field Installable SC Connector, Singlemode-UPC, Blue, for 250/900um, single pack -
760117960 | MFC-SCF-09-6X QWIK II™ SC Qwik II® Field Installable SC Connector, OM1, Beige, for 250/900um, single pack
-
![]()
760117978 | MFC-SCF-09-5X-25 QWIK II™ SC Qwik II® Field Installable SC Connector, OM3/4/5, Aqua, for 250/900um, 25 per pack -
![]()
760117986 | SFC-SCF-09-8X-25 QWIK II™ SC Qwik II® Field Installable SC Connector, Singlemode-UPC, Blue, for 250/900um, 25 per pack -
760117994 | MFC-SCF-09-6X-25 QWIK II™ SC Qwik II® Field Installable SC Connector, OM1, Beige, for 250/900um, 25 per pack
-
![]()
760184689 | SFC-SCF-09-8A-25-PACK QWIK II™ SC Qwik II® Field Installable SC Connector, Singlemode-APC, Green, for 250/900um, 25 per pack -
![]()
760184697 | SFC-LCF-09-8A-25-PACK QWIK II™ LC Qwik II® Field Installable LC Connector, Singlemode-APC, Green, for 250/900um, 25 per pack -
![]()
760242343 | MFC-LCF-UNV-5X QWIK II™ LC Qwik II® Field Installable LC Connector, OM3/4/5, Aqua, for 0.25/0.9/2.0/3.0 mm, single pack -
![]()
760242344 | SFC-LCF-UNV-8X QWIK II™ LC Qwik II® Field Installable LC Connector, Singlemode-UPC, Blue, for 0.25/0.9/2.0/3.0 mm, single pack -
![]()
760242346 | MFC-SCF-UNV-5X QWIK II™ SC Qwik II® Field Installable SC Connector, OM3/4/5, Aqua, for 0.25/0.9/2.0/3.0 mm, single pack -
![]()
760242347 | SFC-SCF-UNV-8X QWIK II™ SC Qwik II® Field Installable SC Connector, Singlemode-UPC, Blue, for 0.25/0.9/2.0/3.0 mm, single pack -
![]()
760242348 | SFC-SCAF-UNV-8X QWIK II™ SC Qwik II® Field Installable SC Connector, Singlemode-APC, Green, for 0.25/0.9/2.0/3.0 mm, single pack
Structural Support, Tools & Accessories
-
![]()
760242377 | TERM-TOOL-KIT-BA QWIK II™ LC Basic Termination Toolkit for Field Installable Qwik II Connectors -
![]()

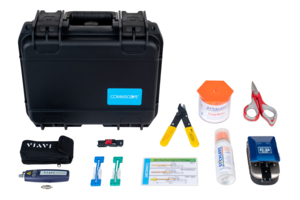

760248225 | TERM-TOOL-KIT-PR QWIK II™ Premium Termination Toolkit for Field Installable Qwik II Connectors
