760254908 | PPL-2U-HD-FX-OPEN

Base Product: PROPEL-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

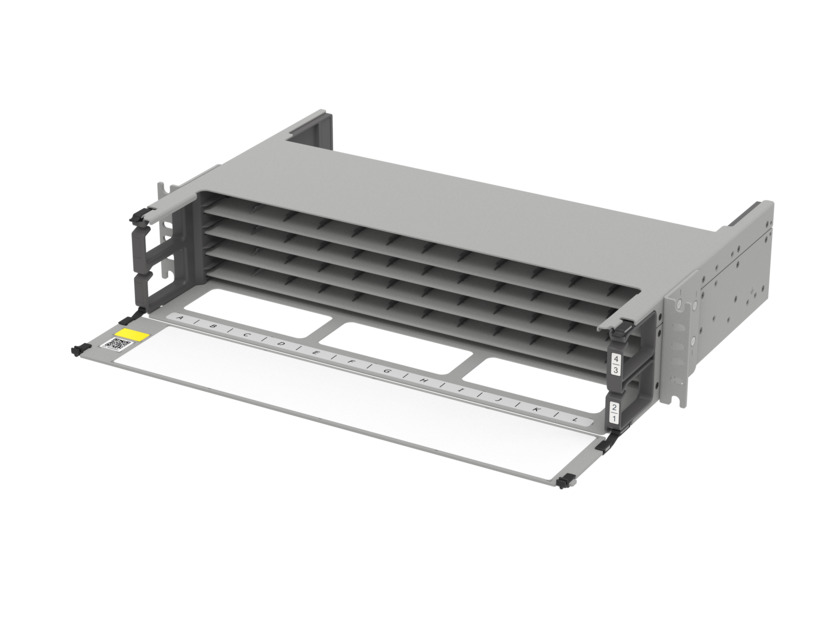

Propel 2RU fixed tray open fiber panel, accepts Propel components, providing up to 96 duplex LC ports, 96 MPO ports or 192 SN ports (384f)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Any size Propel component can be used in each panel or blade
  • Components can be installed and removed from front or rear of panel
  • Supports 8f, 12f, 16f and 24f applications while maintaining full panel density

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber patch panel
Product Brand Propel
Product Series PPL

General Specifications

Color Gray
Interface, front Unloaded
Rack Type EIA 19 in
Rack Units 2
Shelf Movement Fixed
Total Ports, quantity 0

Dimensions

Height 88 mm | 3.465 in
Width 483 mm | 19.016 in
Depth 293 mm | 11.535 in

Port Configuration

Click on image to enlarge.

Material Specifications

Material Type Aluminum | Steel

Environmental Specifications

Safety Standard c-UL-us

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber patch panel
Product Brand Propel
Product Series PPL

General Specifications

Color Gray
Interface, front Unloaded
Rack Type EIA 19 in
Rack Units 2
Shelf Movement Fixed
Total Ports, quantity 0

Dimensions

Height 88 mm | 3.465 in
Width 483 mm | 19.016 in
Depth 293 mm | 11.535 in

Material Specifications

Material Type Aluminum | Steel

Environmental Specifications

Safety Standard c-UL-us

Packaging and Weights

Packaging quantity 1
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
