TeraSPEED® LC/UPC to Unconnectorized, Distribution Cable, 48-Fiber, Plenum

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of FSWLCUCWH by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Jacket Color Breakout Length/Option Cord Length
No configured items found.

Product Classification

Regional Availability North America
Portfolio CommScope®
Product Type Fiber distribution cable assembly
Product Brand SYSTIMAX InstaPATCH® 360
Ordering Note For lengths greater than 999 ft (304 m), orders must be in meters

General Specifications

Cable Glands No glands
Color, connector A Blue
Construction Type Distribution, indoor
Interface Feature, connector A Keyed
Interface, Connector B Unterminated
Total Fibers, quantity 48

Dimensions

Cable Assembly Length Range (m) 3 – 999
Cable Assembly Length Range (ft) 10 – 999

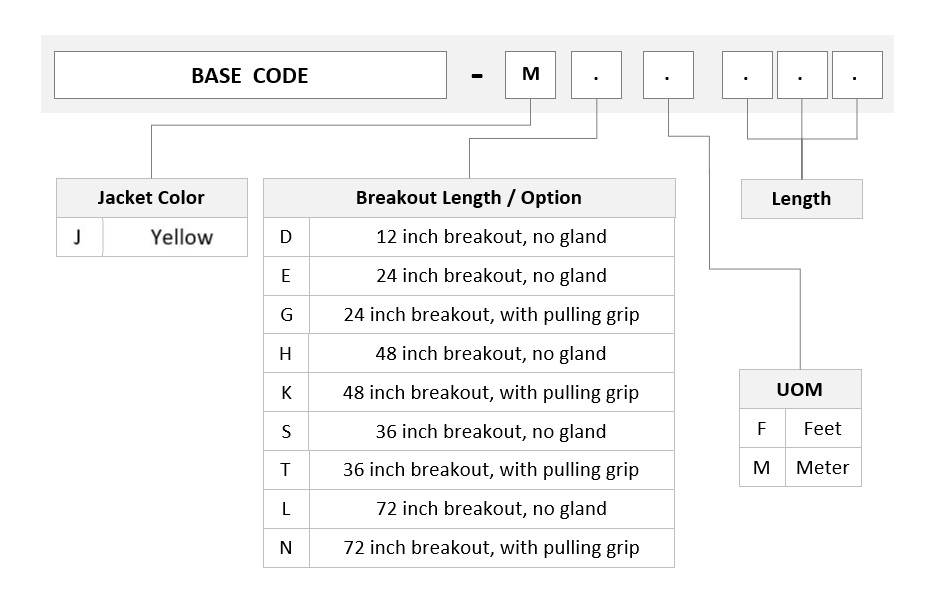

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Cable Retention Strength, maximum 0.50 lb @ 0 ° | 0.50 lb @ 90 °

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.652.D | G.657.A1, TeraSPEED®

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space Indoor | Plenum

Product Classification

Regional Availability North America
Portfolio CommScope®
Product Type Fiber distribution cable assembly
Product Brand SYSTIMAX InstaPATCH® 360
Ordering Note For lengths greater than 999 ft (304 m), orders must be in meters

General Specifications

Cable Glands No glands
Color, connector A Blue
Construction Type Distribution, indoor
Interface Feature, connector A Keyed
Interface, Connector B Unterminated
Total Fibers, quantity 48

Dimensions

Cable Assembly Length Range (m) 3 – 999
Cable Assembly Length Range (ft) 10 – 999

Mechanical Specifications

Cable Retention Strength, maximum 0.50 lb @ 0 ° | 0.50 lb @ 90 °

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.652.D | G.657.A1, TeraSPEED®

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space Indoor | Plenum
