N-CN

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

Fiber Optic Cable, Indoor Zero Halogen, Dual listed, Central Tube All-Dielectric

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of N-CN by selecting options

Product	Jacket Marking	Regional Availability	Portfolio	Product Type	Product Series	Cable Type	Construction Type	Jacket Color	Total Fiber Count	Fiber Type	Environmental Space
760212142 \| N-012-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 12 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	12	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser
760212159 \| N-024-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 24 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	24	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser
760212167 \| N-036-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 36 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	36	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser
760212175 \| N-048-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 48 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	48	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser
760212183 \| N-060-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 60 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	60	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser
760212191 \| N-072-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 72 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	72	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser
760212209 \| N-096-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 96 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	96	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser
760212217 \| N-144-CN-RB-F12YL/8W/99E Fiber Indoor Cable, LSZH Riser, All-Dielectric, Central Tube Ribbon, Singlemode, G.652.D and G.657.A1, 144 Fibers, Gel-free, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	N-CN	Ribbon central tube	Non-armored	Yellow	144	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Low Smoke Zero Halogen (LSZH) \| Riser

Features and Benefits

CommScope’s indoor fiber cables are positioned for Data Center or Central Office applications
Superior mechanical and optical performance with unmatched stability and quality
Available Jacket Colors: Aqua and Yellow

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	N-CN

General Specifications

Cable Type	Ribbon central tube
Construction Type	Non-armored
Subunit Type	Gel-free

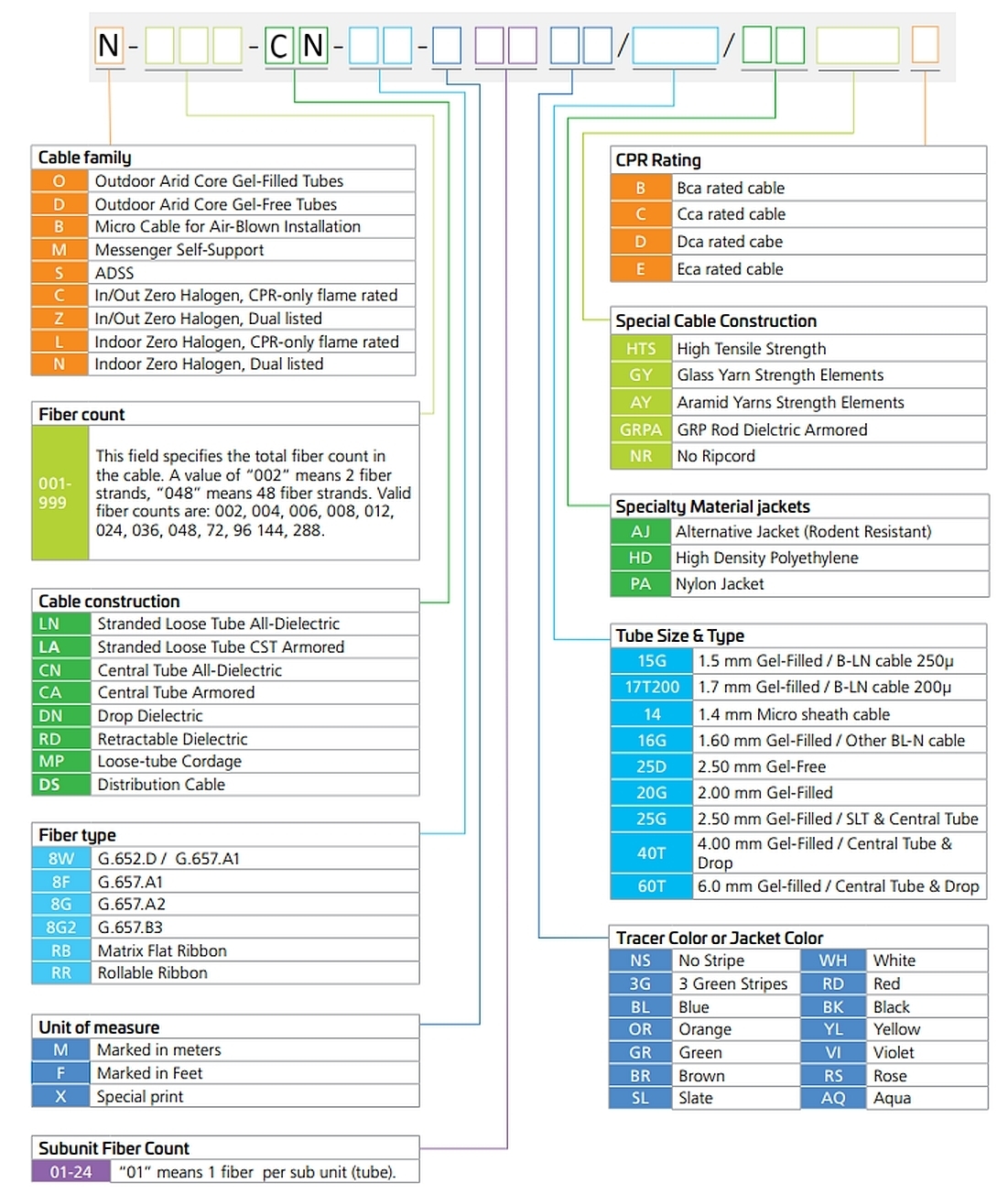

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	25 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7

Environmental Specifications

Installation temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 \| Telcordia GR-409
Environmental Space	Low Smoke Zero Halogen (LSZH) \| Riser
Flame Test Listing	NEC OFNR-LS (ETL) and c(ETL) \| NEC OFNR-ST1 (UL) and c(UL)
Flame Test Method	IEC 60332-3 \| IEC 60754-2 \| UL 1685
Water Penentration Test Method	FOTP-82 \| IEC 60794-1 F5

Environmental Test Specifications

Cable Freeze Test Method	FOTP-98 \| IEC 60794-1 F15
Heat Age Test Method	IEC 60794-1 F9
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1
