Fiber Optic Cable, Indoor Riser, Simplex Zip Cord

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of R-SP by selecting options

Product	Jacket Marking	Regional Availability	Portfolio	Product Type	Product Series	Cable Type	Construction Type	Jacket Color	Total Fiber Count	Fiber Type	Environmental Space
760004499 \| R-001-SP-8W-F29YL Fiber indoor cable, TeraSPEED® 2.9 mm Riser Simplex, Singlemode G.652.D and G.657.A1, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Yellow	1	G.652.D and G.657.A1 \| TeraSPEED®	Riser
760004515 \| R-001-SP-8W-F16YL Fiber indoor cable, TeraSPEED® 1.6 mm Riser Simplex, Singlemode G.652.D and G.657.A1, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Yellow	1	G.652.D and G.657.A1 \| TeraSPEED®	Riser
760010561 \| R-001-SP-5K-F29AQ Fiber indoor cable, LazrSPEED® 2.9 mm diameter, Riser, 1 fiber, Multimode OM4, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Aqua	1	OM4 \| LazrSPEED® 550 \| OM4 \| LazrSPEED® 550	Riser
760010587 \| R-001-SP-5K-F16AQ Fiber indoor cable, LazrSPEED® 1.6 mm Riser Simplex, Multimode OM4, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Aqua	1	OM4 \| LazrSPEED® 550 \| OM4 \| LazrSPEED® 550	Riser
760093518 \| R-001-SP-8W-F16AQ Fiber indoor cable, TeraSPEED® 1.6 mm Riser Simplex, Singlemode G.652.D and G.657.A1, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Aqua	1	G.652.D and G.657.A1 \| TeraSPEED®	Riser
760102319 \| R-001-SP-8W-F29OR Fiber indoor cable, TeraSPEED® 2.9 mm Riser Simplex, Singlemode G.652.D and G.657.A1, Feet jacket marking, Orange jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Orange	1	G.652.D and G.657.A1 \| TeraSPEED®	Riser
760119362 \| R-001-SP-5L-F25AQ Fiber indoor cable, LazrSPEED® 2.5 mm Riser Simplex, Multimode OM3, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Aqua	1	OM3 \| LazrSPEED® 300 \| OM3 \| LazrSPEED® 300	Riser
760119370 \| R-001-SP-8W-F25YL Fiber indoor cable, TeraSPEED® 2.5 mm Riser Simplex, Singlemode G.652.D and G.657.A1, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	R-SP	Cordage	Non-armored	Yellow	1	G.652.D and G.657.A1 \| TeraSPEED®	Riser

Features and Benefits

CommScope’s indoor fiber cables are positioned for Data Center or Central Office applications
Superior mechanical and optical performance with unmatched stability and quality
Available Jacket Colors: Aqua and Yellow

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	R-SP

General Specifications

Cable Type	Cordage
Construction Type	Non-armored
Subunit Type	Gel-free

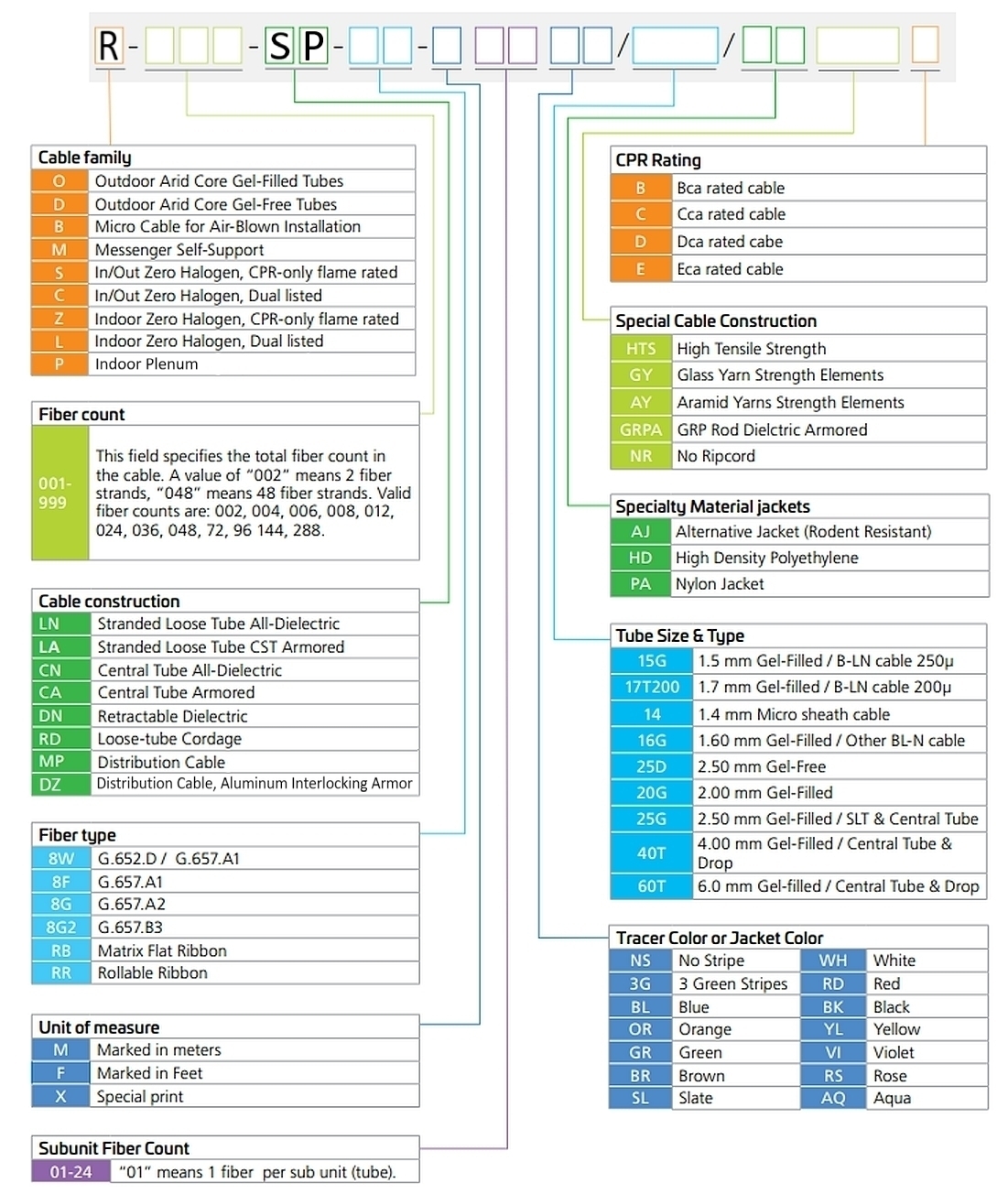

Ordering Tree

Click on image to enlarge.

Environmental Specifications

Installation temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Riser

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	R-SP

General Specifications

Cable Type	Cordage
Construction Type	Non-armored
Subunit Type	Gel-free

Environmental Specifications

Installation temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Riser
