5302203 | P3® 500 JCASS

Available in:
North America

75 Ohm P3® Trunk and Distribution Cable, black PE jacket, flooded for underground

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Features and Benefits

*Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Specifications

Product Classification

Regional Availability	North America
Product Type	Coaxial hardline cable
Product Brand	P3®
Government Requirements	Build America Buy America (BABA) compliant*
Warranty	One year

General Specifications

Cable Type	500 Series
Construction Type	Swaged
Jacket Color	Black
Location of Manufacturing	Catawba, North Carolina
Short Description	P3 500 JCASS SM PR997

Dimensions

Cable Length	731.52 m \| 2400 ft
Diameter Over Center Conductor, nominal	2.769 mm \| 0.109 in
Diameter Over Dielectric, nominal	11.481 mm \| 0.452 in
Diameter Over Jacket, nominal	14.478 mm \| 0.57 in
Diameter Over Outer Conductor, nominal	12.7 mm \| 0.5 in
Jacket Thickness, nominal	0.762 mm \| 0.03 in
Outer Conductor Thickness, nominal	0.61 mm \| 0.024 in

Electrical Specifications

Capacitance	50.197 pF/m \| 15.3 pF/ft
Capacitance Tolerance	±1.0 pF/ft
Characteristic Impedance	75 ohm
Characteristic Impedance Tolerance	±2 ohm
dc Resistance Note	Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal	4.429 ohms/km \| 1.35 ohms/kft
dc Resistance, Loop, nominal	5.643 ohms/km \| 1.72 ohms/kft
dc Resistance, Outer Conductor, nominal	1.214 ohms/km \| 0.37 ohms/kft
Jacket Spark Test Voltage	5000 Vac
Nominal Velocity of Propagation (NVP)	87 %
Operating Frequency Band	5–3000 MHz
Structural Return Loss	24 dB @ 1003–1218 MHz \| 24 dB @ 1219–1794 MHz \| 30 dB @ 5–1002 MHz
Structural Return Loss, Grade N	≥24 dB @ 1003–1218 MHz \| ≥24 dB @ 1219–1794 MHz \| ≥30 dB @ 5–1002 MHz

Attenuation

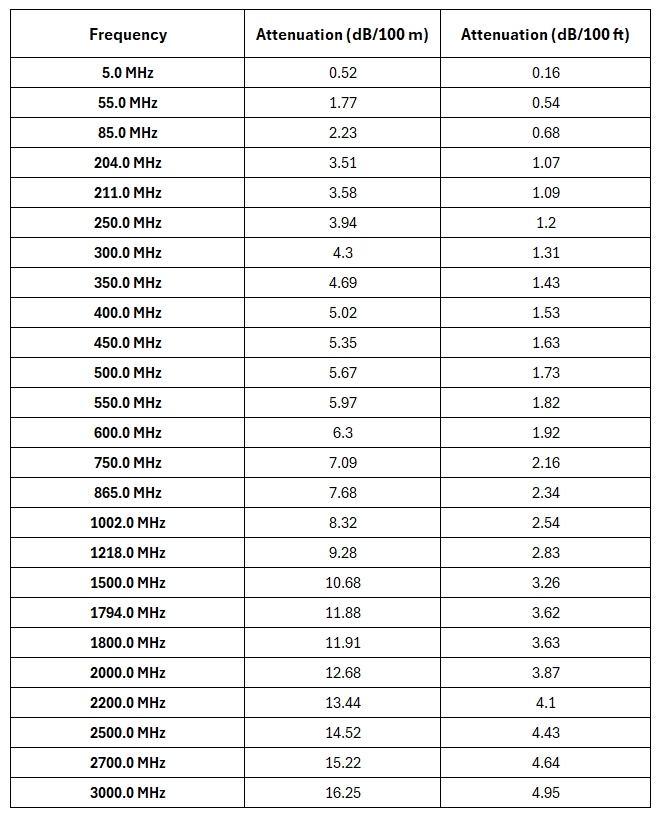

Frequency	Attenuation (dB/100 m)	Attenuation (dB/100 ft)
5.0 MHz	0.520	0.160
55.0 MHz	1.770	0.540
85.0 MHz	2.230	0.680
204.0 MHz	3.510	1.070
211.0 MHz	3.580	1.090
250.0 MHz	3.940	1.200
300.0 MHz	4.300	1.310
350.0 MHz	4.690	1.430
400.0 MHz	5.020	1.530
450.0 MHz	5.350	1.630
500.0 MHz	5.670	1.730
550.0 MHz	5.970	1.820
600.0 MHz	6.300	1.920
750.0 MHz	7.090	2.160
865.0 MHz	7.680	2.340
1002.0 MHz	8.320	2.540
1218.0 MHz	9.280	2.830
1500.0 MHz	10.680	3.260
1794.0 MHz	11.880	3.620
1800.0 MHz	11.910	3.630
2000.0 MHz	12.680	3.870
2200.0 MHz	13.440	4.100
2500.0 MHz	14.520	4.430
2700.0 MHz	15.220	4.640
3000.0 MHz	16.250	4.950

Material Specifications

Center Conductor Material	Copper-clad aluminum
Dielectric Material	Foam PE
Jacket Material	PE
Outer Conductor Material	Aluminum

Mechanical Specifications

Minimum Bend Radius, bonded	88.9 mm \| 3.5 in
Pulling Tension, maximum	136.078 kg \| 300 lb

Environmental Specifications

Corrosion Protection	Migraheal®
Environmental Space	Buried

Packaging and Weights

Packaging Type	Reel
Weight, gross	183.044 kg/km \| 123 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
