MHD-M0DH

Base Product: MHD

  • Available in:
  • Asia
  • Latin America
  • North America

Hardened Multifiber Optical Connector (HMFOC) cable assembly, HMFOC jack to stub, 12-fiber

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Variants

Configure and display product variants of MHD-M0DH by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Cable Assembly Length UOM
No configured items found.
Features and Benefits
  • Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
  • Hardened drop cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
  • Hardened drop cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network
  • *Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Product Classification

Regional Availability Asia | Latin America | North America
Product Type Fiber drop cable assembly
Product Series MHD
Government Requirements Build America Buy America (BABA) compliant*

General Specifications

Cable Type Toneable - Flat
Connector A, quantity 1
Color, boot A Black
Color, connector A Black
Interface, Connector A Hardened multi-fiber (HMFOC) jack
Interface Feature, connector A Male | Pinned
Interface, Connector B Unterminated
Jacket Color Black
Location of Manufacturing Catawba, North Carolina
Total Fibers, quantity 12

Dimensions

Cable Assembly Length Range (m) 8 – 915
Cable Assembly Length Range (ft) 25 – 3000
Cable Outer Diameter 4.3 x 9.9 mm (0.17 x 0.39 in)

Ordering Tree

Click on image to enlarge.

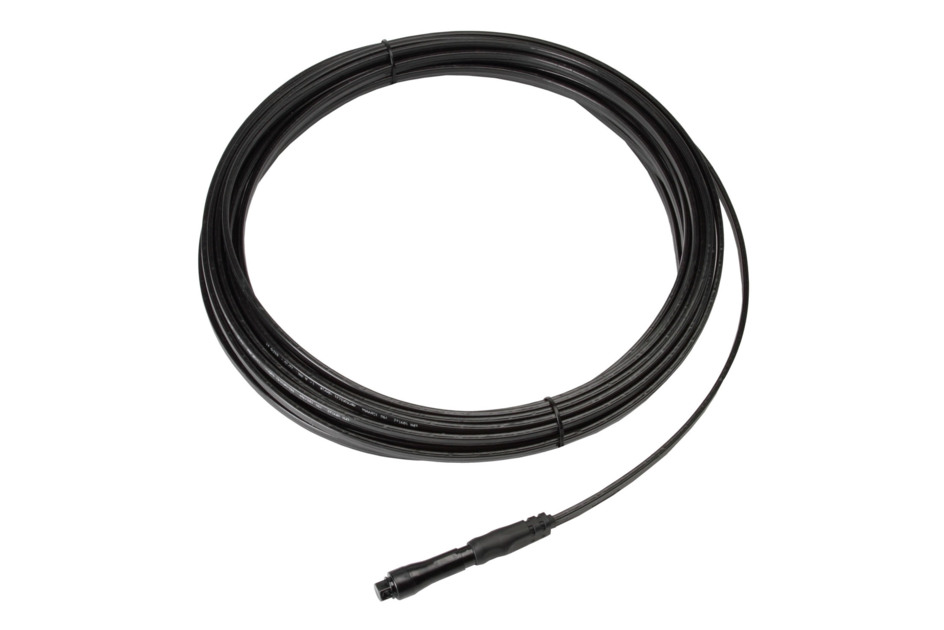

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded 86 mm | 3.386 in
Minimum Bend Radius, unloaded 81 mm | 3.189 in
Tensile Load, long term, maximum 400 N | 89.924 lbf
Tensile Load, short term, maximum 1334 N | 299.895 lbf

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A 0.45 dB
Return Loss, minimum, connector A 65 dB

Environmental Specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space Outdoor, buried
Jacket UV Resistance UV stabilized
Qualification Standards IEC 61753-1, category A and G | IP68 | Per GR-3152

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
