SRC3-U5A1B1BL003-US

Base Product: SRC

Available in:
Asia
EMEA
Latin America
North America

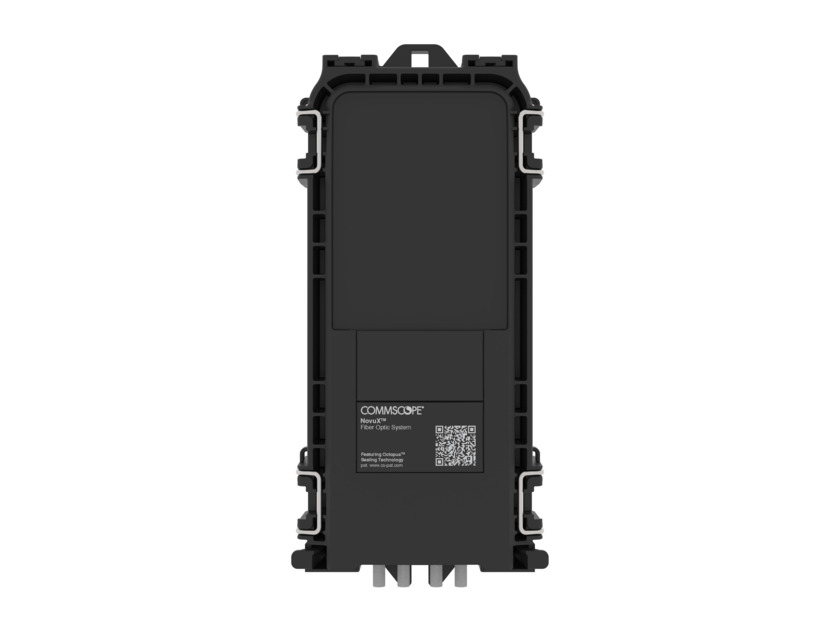

NOVUX™ Specialty Range Closure 100, splice only, no adapter, no splitter, 12 splices, SMOUV® 45mm & 12-way ribbon splice protectors, black, 2x NVX-CR-MC-FT-NN cable retention, 2x pre-installed FHD-F01K-0003M, Build America Buy America (BABA)

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Build America Buy America (BABA)*

BABA Compliant Product coming soon

Broadband for Everyone Program

Features and Benefits

Modern drop solution offering providers the agility and flexibility to use it in last-mile fiber network applications, both above and below ground
Protected from harsh conditions by CommScope’s Octopus gel sealing technology
Agnostic to connectivity technologies: splice, connector, field-installable connector for agility and flexibility
Identification plate for either QR code or customer logo
QR code and CommScope cTrak® app for one-click access to all product information
*CommScope intends to release this product at a future date. At such time, this product will comply with the requirements of the Build America, Buy America Act and/or applicable waivers. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Specifications

Product Classification

Regional Availability	Asia \| EMEA \| Latin America \| North America
Regional Availability Note	Contact your local CommScope representative for specific availability
Product Type	Single-ended, rectangular fiber closure
Product Brand	NOVUX™
Product Series	SRC100
Government Requirements	Build America Buy America (BABA) coming soon*

General Specifications

Cable Capacity, Drop	4 Flat 8.0 x 4.5 mm (0.30 x 0.17 in) \| 4 Round 1.2–8.0 mm (0.05–0.31 in)
Cable Ports Quantity, total	4 multi-out ports (8 cables)
Cable Sealing Type	Compressed gel
Cable Termination Attachments, quantity	2
Closure Sealing Type	Hinged with latch
Closure Style	Single-ended
Color	Black
Location of Manufacturing	Coming soon
Mounting	Handhole \| Partially buried \| Pedestal \| Wall/Pole Mount, mounting kit included
Network Area Type	Drop
Port Type	No adapter \| No adapter
Port, quantity	0
Splice Tray Included, quantity	1
Splice Tray Type Included	12-way, heat shrink
Splicing Capacity, maximum	12
Splicing Capacity, Single Fusion, maximum	12
Splicing Type, Supported	Single fusion
Splitter Type	No splitter
Splitter, quantity	0

Dimensions

Height	267 mm \| 10.512 in
Width	117 mm \| 4.606 in
Depth	49 mm \| 1.929 in
Cable Entry Drop Port Diameter	8 mm (0.31 in) mm

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type

Impact-resistant polymer

Optical Specifications

Fiber Type

G.652.D | G.657.A1 | G.657.A2 | G.657.B3

Environmental Specifications

Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Above ground \| Below ground \| Direct burial
Qualification Standards	IEC 60529, IP68 + 2 m waterhead \| IEC 61753-1, category G
UV Resistance	UV stabilized
Water Resistance	Flash test valve at 2 psi (20 kPa)

Packaging and Weights

Packaging quantity	10
Packaging Type	Box \| Carton
