CSC7-E3F6A1BC000

Base Product: CSC

Available in:
Asia
EMEA
Latin America
North America

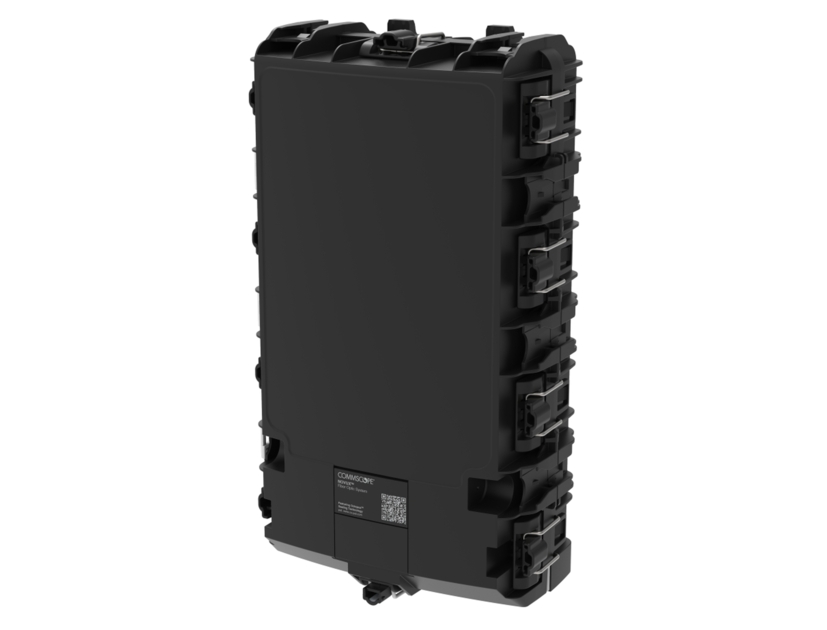

NOVUX™ CSC200 Compact Fiber Closure, splice only, 3 single fiber trays open routing, 4 feeder ports, SC/APC adapters, no splitters, with mounting bracket, black

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

CommScope’s new NOVUX™ non-hardened compact closure designed for the drop (access) network
Configurable as splice only or connectorized solution
Octopus™ gel compatible with high end environmental specifications for aerial, pedestal, underground and direct buried applications
Available in black (RAL 9005) and gray (RAL 7035)
NOVUX™ compact closures come with a QR code link to product documentation and C-track
Modular design compatible with a range of accessories such as mounting brackets, cable retentions, grounding, etc.
Removable inner body with 360-degree access for ease of fiber installation

Specifications

Product Classification

Regional Availability	Asia \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Single-ended, rectangular fiber closure
Product Brand	NOVUX™
Product Series	CSC 200

General Specifications

Cable Ports Quantity, total	4 round ports + 12 multi-out ports (24 cables)
Cable Sealing Type	Compressed gel
Closure Sealing Type	Hinged with latch
Closure Style	Single-ended
Color	Black
Mounting	Pole \| Wall
Port Type	SC/APC
Port, quantity	12
Splice Tray Included, quantity	3
Splice Tray Type Included	48-way, single fiber tray with open routing
Splicing Capacity, maximum	144
Splitter Type	No splitter
Splitter, quantity	0

Dimensions

Height	388.2 mm \| 15.283 in
Width	222 mm \| 8.740 in
Depth	116 mm \| 4.567 in

Environmental Specifications

Environmental Space	Outdoor
UV Resistance	UV stabilized

Packaging and Weights

Included	Mounting hardware
Packaging quantity	1
Packaging Type	Box \| Carton

Product Classification

Regional Availability	Asia \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Single-ended, rectangular fiber closure
Product Brand	NOVUX™
Product Series	CSC 200

General Specifications

Cable Ports Quantity, total	4 round ports + 12 multi-out ports (24 cables)
Cable Sealing Type	Compressed gel
Closure Sealing Type	Hinged with latch
Closure Style	Single-ended
Color	Black
Mounting	Pole \| Wall
Port Type	SC/APC
Port, quantity	12
Splice Tray Included, quantity	3
Splice Tray Type Included	48-way, single fiber tray with open routing
Splicing Capacity, maximum	144
Splitter Type	No splitter
Splitter, quantity	0
