MDC-JJ1H

Base Product: MDC

  • Available in:
  • Latin America
  • North America

RealFlex® 3 Fiber Optic Drop Cable Assembly, SC/APC to SC/APC, Indoor/Outdoor Riser Cable, Ivory

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of MDC-JJ1H by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Cable Assembly Length UOM Spool Option
No configured items found.
Features and Benefits
  • Allow for a fiber bend radius as small as 7.5 millimeters without changing attenuation characteristics, and improve the insertion loss (IL) performance for 90-degree bend locations
  • Indoor/outdoor cable available in both riser and plenum cable types for use in residential, business or MDU (multiple dwelling unit) structures

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber drop cable assembly
Product Brand RealFlex®
Product Series MDC
Ordering Note Lengths 1-350 ft are coiled. Lengths 351 ft + are spooled. Lengths under 351' that require a spool will need to include a spool option J at the end of the MID. When "J" option is included in the MID then Connector A will deploy first.

General Specifications

Cable Type Stapleable - Round
Connector A, quantity 1
Color, boot A Green
Color, connector A Green
Connector B, quantity 1
Color, boot B Green
Color, connector B Green
Interface, Connector A SC/APC
Interface Feature, connector A Male
Interface, Connector B SC/APC
Interface Feature, connector B Male
Jacket Color Ivory
Total Fibers, quantity 1
Transmission Standards TIA/EIA-568-B.3

Dimensions

Cable Assembly Length Range (m) 1 – 1000
Cable Assembly Length Range (ft) 1 – 1000
Cable Outer Diameter 2.9 mm (0.11 in)

Ordering Tree

Click on image to enlarge.

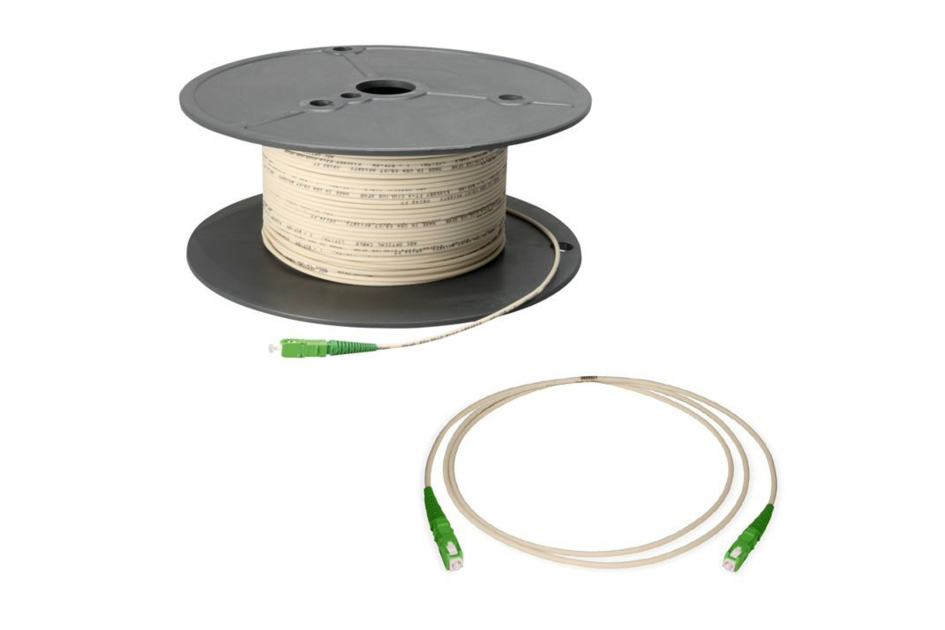

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded 50 mm | 1.969 in
Minimum Bend Radius, unloaded 30 mm | 1.181 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2/B2
Insertion Loss, maximum, connector A 0.4 dB
Insertion Loss, maximum, connector B 0.4 dB
Return Loss, minimum, connector A 65 dB
Return Loss, minimum, connector B 65 dB

Environmental Specifications

Installation temperature -20 °C to +60 °C (-4 °F to +140 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Riser
Jacket UV Resistance UV stabilized
Qualification Standards GR-409

Packaging and Weights

Cable weight 7.9 kg/km | 5.309 lb/kft
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant/Exempted
