760245687 | OTE2-08IH-18-S24-4

Base Product: OTE2

Available in:
Asia
Australia/New Zealand
EMEA
Latin America

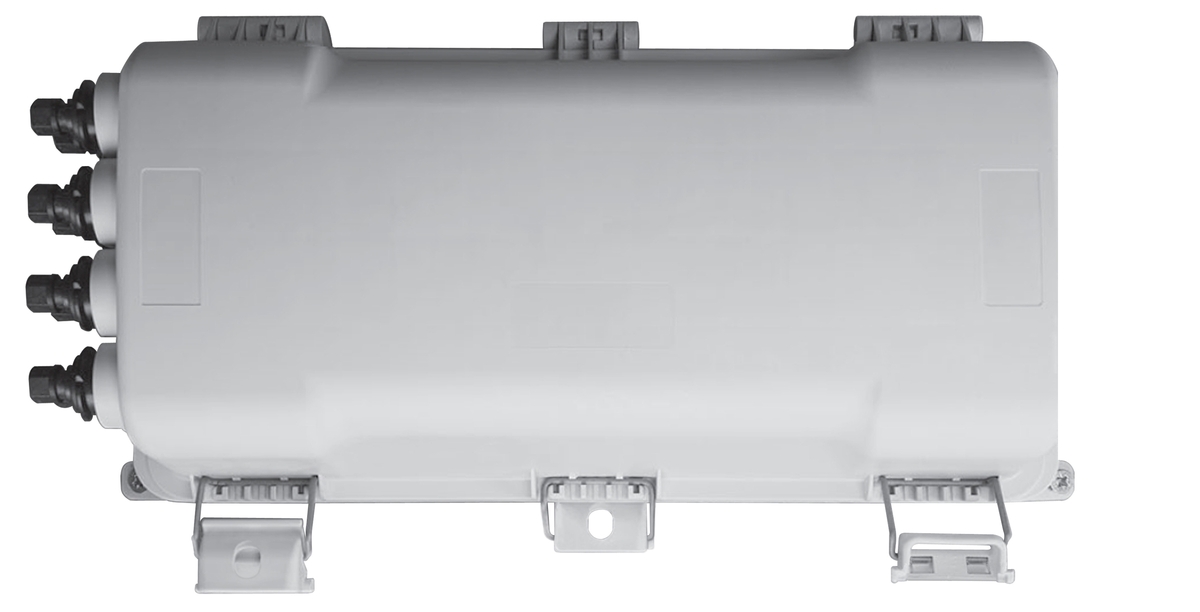

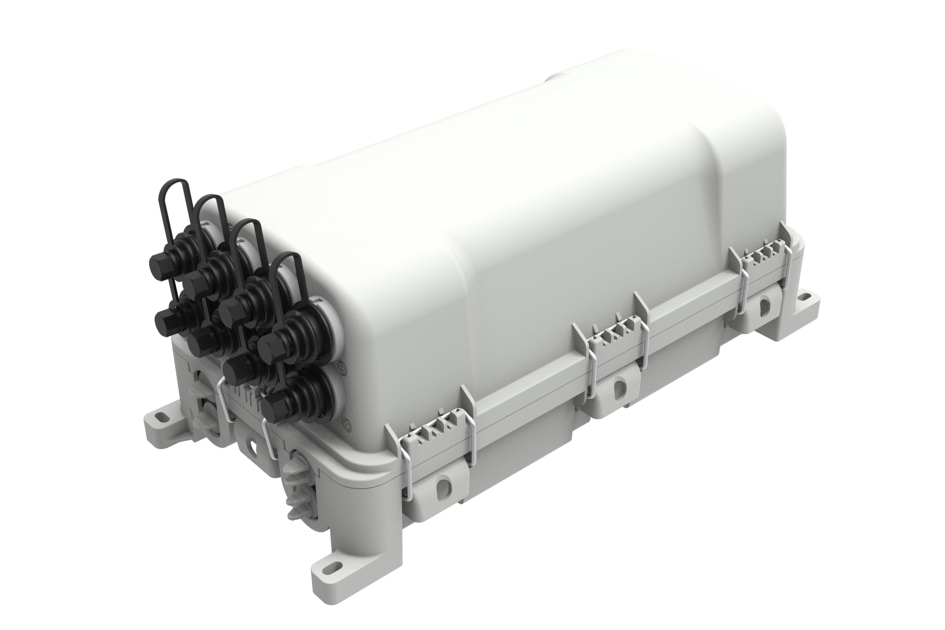

OTE2 Series, Optical Terminal Enclosure, 8-port full-size connector, 1x8 splitter, gray, wall mount

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Optical Terminal Enclosures incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Offers a unique solution for splicing, termination and pass-through cable applications in optical drop cable deployments
Hardened adapters are factory-terminated and environmentally sealed to ensure rapid plug-and play drop cable installations
The universal cable termination system guarantees easy, fast and reliable cable fixation and manipulations

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America
Product Type	Access terminal, with splitter
Product Series	OTE

General Specifications

Application	Accepts fiber drop cables, 7 mm diameter \| Accepts fiber feeder cables, 10-16 mm diameter \| For holding up to 5 24-way splice trays \| Offers up to 16 hardened adapter ports \| Offers up to 4x4 standard cable ports
Cable Type	No cable (stubless)
Cable, quantity	0
Distribution Type	1 x 8 splitter
Enclosure Color	Gray
Mounting	Pole \| Wall
Port Type	Hardened full-size SC/APC
Port, quantity	8
Splice Tray Included, quantity	4
Splice Tray Type Included	24-way, heat shrink
Splitter, quantity	1
Stub Type	No tail

Dimensions

Height	147 mm \| 5.787 in
Width	372 mm \| 14.646 in
Depth	186 mm \| 7.323 in
Cable Length, stub	0 ft (0 m)

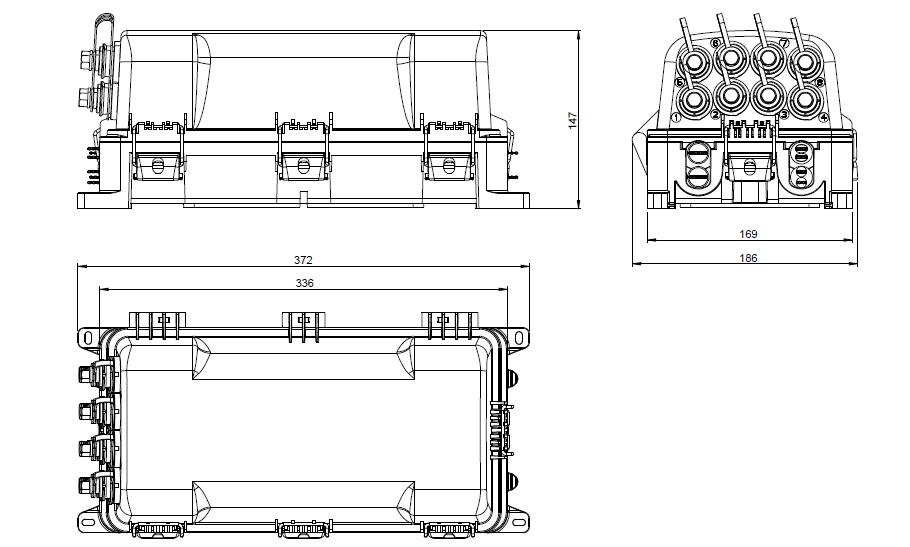

Dimension Drawing

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type

Glass filled polypropylene (GF-PP)

Optical Specifications

Operating Wavelength Range	1260 – 1635 nm
Attenuation Splitter, maximum	10.4 dB
Attenuation Terminal Connectors, maximum	0.4 dB
Directivity, minimum	60 dB
Insertion Loss, Splitter, typical	10 dB
Insertion Loss, Terminal Connector, typical	0.16 dB
Return Loss, Connector, minimum	65 dB
Return Loss, Single Ports, minimum	55 dB

Environmental Specifications

Operating Temperature	-40 ºC to +65 ºC (-40 ºF to +149 ºF)
Relative Humidity	5%–100%, condensing
Environmental Space	Above ground \| Below ground \| Buried
Qualification Standards	IEC 60529, IP65
UV Resistance	UV stabilized

Packaging and Weights

Included	Cable fixation kit (5) \| Cable seal kit (4) \| Enclosure (1) \| Optical splitter (1) \| Splice cassette (4) \| Wall fixation screws (4)
Packaging quantity	1
Packaging Type	Box \| Carton

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant/Exempted
