760245964 | OTE2-16IH-18-S24-4

Base Product: OTE2

  • Available in:
  • EMEA

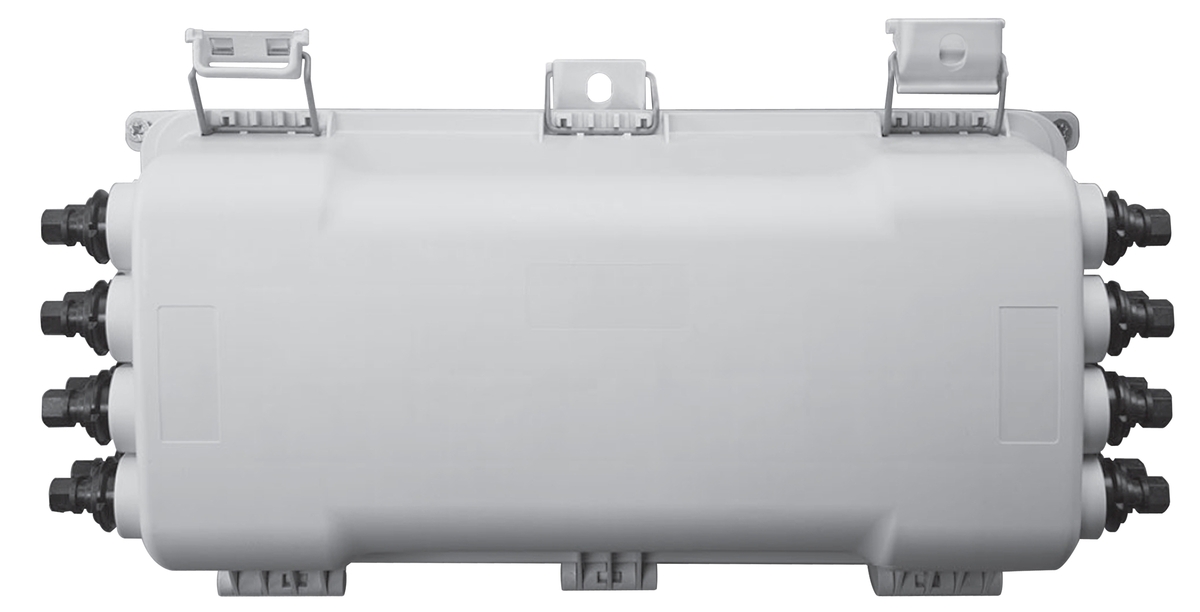

OTE2 Series, Optical Terminal Enclosure, 16-port full-size connector, 1x8 splitter, gray, wall mount

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Optical Terminal Enclosures incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
  • Offers a unique solution for splicing, termination and pass-through cable applications in optical drop cable deployments
  • Hardened adapters are factory-terminated and environmentally sealed to ensure rapid plug-and play drop cable installations
  • The universal cable termination system guarantees easy, fast and reliable cable fixation and manipulations

Product Classification

Regional Availability EMEA
Product Type Access terminal, with splitter
Product Series OTE

General Specifications

Application Accepts fiber drop cables, 7 mm diameter | Accepts fiber feeder cables, 10-16 mm diameter | For holding up to 5 24-way splice trays | Offers up to 16 hardened adapter ports | Offers up to 4x4 standard cable ports
Cable Type No cable (stubless)
Cable, quantity 0
Distribution Type 1 x 8 splitter
Enclosure Color Gray
Mounting Pole | Wall
Port Type Hardened full-size SC/APC
Port, quantity 16
Splice Tray Included, quantity 4
Splice Tray Type Included 24-way, heat shrink
Splitter, quantity 1
Stub Type No tail

Dimensions

Height 147 mm | 5.787 in
Width 372 mm | 14.646 in
Depth 186 mm | 7.323 in
Cable Length, stub 0 ft (0 m)

Dimension Drawing

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type Glass filled polypropylene (GF-PP)

Optical Specifications

Operating Wavelength Range 1260 – 1635 nm
Attenuation Splitter, maximum 13.7 dB
Attenuation Terminal Connectors, maximum 0.4 dB
Directivity, minimum 60 dB
Insertion Loss, Splitter, typical 13.1 dB
Insertion Loss, Terminal Connector, typical 0.16 dB
Return Loss, Connector, minimum 65 dB
Return Loss, Single Ports, minimum 55 dB

Environmental Specifications

Operating Temperature -40 ºC to +65 ºC (-40 ºF to +149 ºF)
Relative Humidity 5%–100%, condensing
Environmental Space Above ground | Below ground | Buried
Qualification Standards IEC 60529, IP65
UV Resistance UV stabilized

Packaging and Weights

Included Cable fixation kit (5) | Cable seal kit (4) | Enclosure (1) | Optical splitter (1) | Splice cassette (4) | Wall fixation screws (4)
Packaging quantity 1
Packaging Type Box | Carton

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant/Exempted
