HST-B2AA00000AN000

Base Product: HST

Available in:
Asia
EMEA
Latin America
North America

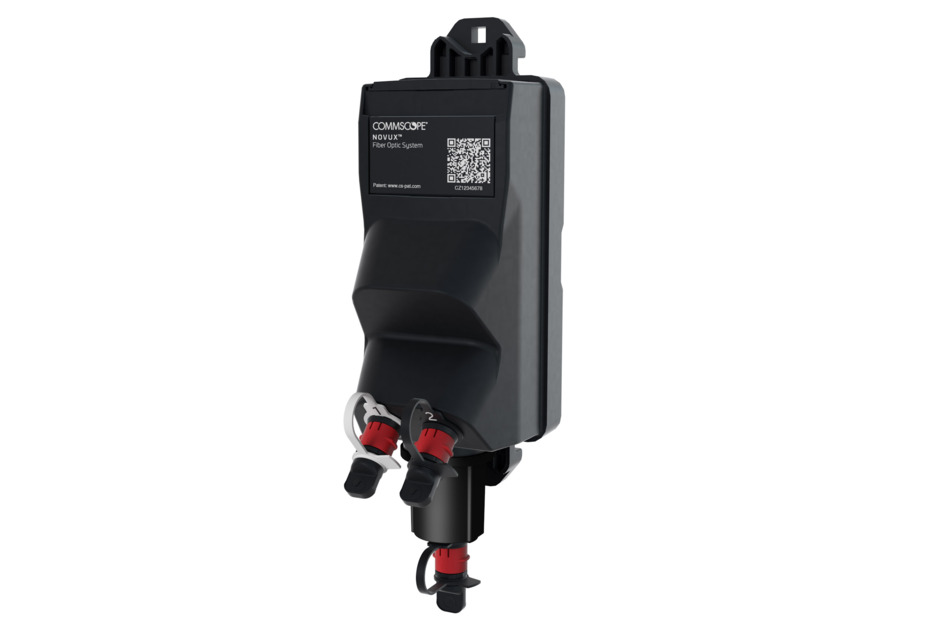

HST, NOVUX™ Prodigy™ Hardened Standard Terminal, 2-port Planar 1:2 Splitter, 1 input and 2 output ports

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

NOVUX™ Prodigy™ Hardened Multi-port Terminals incorporate Hardened connector technology that is designed to withstand the rugged outside plant environment
Hardened connectors are factory-integrated and environmentally sealed for use in optical drop cable deployments
Plug and play adapter ports ensure rapid cable installment in the outside plant access section of the network
NOVUX™ Prodigy™ HST terminals are available with 2 to 12 ports and can be utilized in Single Fiber Point-to-Point (P2P) solutions
Available with flat dielectric, flat toneable/locatable dielectric, armored or 5mm round cable
NOVUX™ Prodigy™ smaller terminal size for aesthetics and allowing installation in constrained spaces
NOVUX™ Prodigy™ terminals are available in Black (RAL# 9005) or Gray (RAL# 7035)
CommScope Product ID plate with QR code link to product documents and C-Track

Specifications

Product Classification

Regional Availability	Asia \| EMEA \| Latin America \| North America
Product Type	Access terminal, with splitter/tap
Product Brand	NOVUX™
Product Series	HST
Minimum Order Quantity	1

General Specifications

Distribution Type	1 x 2 splitter
Drop Port Type	Hardened Prodigy SC/APC
Drop Port, quantity	2
Enclosure Color	Black (RAL 9005)
Mounting	Handhole \| Pedestal \| Pole \| Strand
Port Type	Hardened Prodigy SC/APC
Port, quantity	2
Splitter, quantity	1
Stub Type	No stub

Dimensions

Height	80 mm \| 3.150 in
Width	79 mm \| 3.110 in
Length	161 mm \| 6.339 in
Cable Length, stub	0 ft (0 m)

Dimension Drawing

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type

Hardened plastic

Optical Specifications

Operating Wavelength Range	1260 – 1635 nm
Attenuation Single Ports, maximum	4.1 dB
Attenuation Splitter, maximum	3.7 dB
Attenuation Terminal Connectors, maximum	0.4 dB
Return Loss, Single Ports, minimum	55 dB

Environmental Specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity	5%–100%, condensing
Environmental Space	Above ground \| Below ground
Qualification Standards	IEC 61753-1, category G \| IEC 61753-111-08 (this represents an IEC 60529 IP68 intrusion protection level)
UV Resistance	UV stabilized

Packaging and Weights

Packaging quantity	1
Packaging Type	Box

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
