MST

CommScope’s history of innovation infiber connectivity and material science has given the multiport service terminal (MST) series the reputation of the industry’saccess terminal workhorse. Designed andbuilt with hardened connector technology,the MST series is factory-terminated and environmentally sealed, to withstand rugged outside plant environments. Plug-and-play connectivity ensures fast deployment and lower installation costs by eliminating time-consuming splicing.

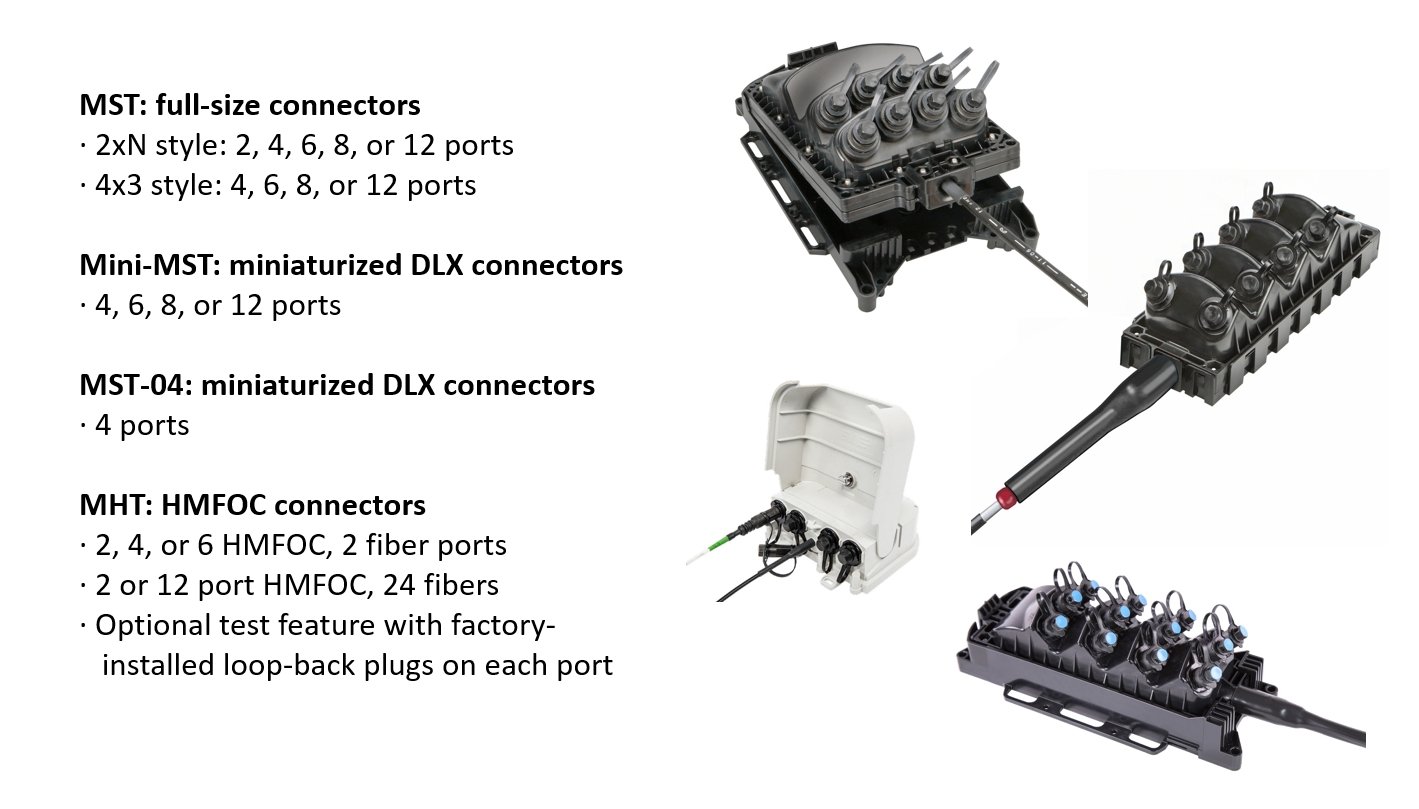

The MST series offers four options

The MST gives providers pole, pedestal,handhole, or strand mounting options, and is offered in two primary configurations: 4x3or 2xN terminal bodies, each using full-size optical connectors.

The Mini-MST is designed specifically for situations requiring high connector densities and small footprints. It can be factory-terminated with as many as 12 hardened miniaturized DLX connectors. This patented connector, only two-thirds the size of fullsize connectors, saves space and brings all the speed and flexibility of plug-and-playinstallations.

The MST-04 series is designed specifically for aerial and wall-mounted applications. This lightweight and very compact terminal features miniaturized DLX connectors, and is perfect for installations in tight spaces or where concealment is desired.

The MHTseries provides up to six ports, with two fibers available per port. The multiport MHT is factory-terminated with HMFOC (hardened multifiber fiber optical connector) connectors, and does not have an internal splitter option.

Key Features:

• No splicing required in the terminal
• No terminal re-entry required
• Available with hardened full-size optical or miniaturized DLX connectors with up to 12 ports
• 1:2, 1:4, or 1:8 splitter options
• Dielectric, toneable, or armored input stub cables
• Pole, pedestal, handhole, or strand mounting options
• Ships with universal mounting bracket
• User-friendly packaging allows foreasy un-spooling
• Factory-sealed enclosure for environmental protection
