FDH3000-LARGE-CABINET

Base Product
  • Available in:
  • North America

FDH 3000 Large sized Fiber Distribution Cabinet

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FDH3000-LARGE-CABINET by selecting options

Loading...
Product
Regional Availability Product Series Product Type Cable Length Enclosure Size Access Distribution Cables, quantity Distribution Ports, quantity Fibers per Distribution Cable, quantity Fibers per Feeder Cable, quantity Interface, Input
FD3-AJ1152J00GGBP6 FD3-AJ1152J00GGBP6
FDH 3000 Fiber Distribution Large Cabinet, 1152F, SC/APC, no splitters, single armor loose tube, 100 ft, 60FFF
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 4 1152 288 60 SC
FD3-AJ288J00JBBP4 FD3-AJ288J00JBBP4
FDH 3000 Fiber Distribution Large Cabinet, 288F, SC/APC, no splitters, dielectric loose tube, 100 ft, 48F
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 2 288 144 48 SC
FD3-AJ360J00GDBP4 FD3-AJ360J00GDBP4
FDH 3000 Fiber Distribution Large Cabinet, 360F, SC/APC, no splitters, single armor loose tube, 200 ft, 48F
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 3 360 48 SC
FD3-AJ432J00TCBP7 FD3-AJ432J00TCBP7
FDH 3000 Fiber Distribution Large Cabinet, 432F, SC/APC, no splitters, dielectric ribbon, 100 ft, 72F
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 2 432 216 72 SC
FD3-AJ432J2ATBBP2 FD3-AJ432J2ATBBP2
FDH 3000 Fiber Distribution Large Cabinet, 432F, SC/APC,(2) 32-splitter modules, dielectric ribbon, 100 ft, 24F
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 3 432 144 24 SC
FD3-AJ504J00GDBP4 FD3-AJ504J00GDBP4
FDH 3000 Fiber Distribution Large Cabinet, 504F, SC/APC, no splitters, single armor loose tube, 100 ft, 48F
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 4 504 48 SC
FD3-AJ576J00DGBP4 FD3-AJ576J00DGBP4
FDH 3000 Fiber Distribution Large Cabinet, 576F, SC/APC, no splitters,dielectric ribbon, 100 ft, 48F
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 2 576 288 48 SC
FD3-AJ576J00GBBP2 FD3-AJ576J00GBBP2
FDH 3000 Fiber Distribution Large Cabinet, 576F, SC/APC, no splitters, single armor loose tube, 100 ft, 24F
North America FDH 3000 Fiber distribution hub 30.480 m | 100 ft Large Front and rear door 4 576 144 24 SC
Features and Benefits
The FDH 3000 is designed to meet and serve the distinct needs of diverse markets and customer segments. The unique design of the FDH 3000 provides for rapid connection between fiber optic cables and passive optical splitters in the outside plant segment of the network, facilitating fast service connection and reconfiguration, simplified network installations and improved installation efficiencies in the field.

Features and Benefits
  • Offers maximized network flexibility facilitating rapid service shifts
  • Allows singular testing demarcation point for technician to CO
  • Unique “swing-out frame“ design allows for easy maintenance and access to back of distribution panels and cables
  • Allows for easy maintenance and access to back of distribution panels and cables · Industry-leading splitter capacity
  • Three-point latch provides weather-tight seal of cabinet
  • Angled bulkhead panels eliminate 90° bends and assist technicians with cable routing
  • Integrated slack storage spools allow for storage of excess fiber while providing positive bend radius control
  • Parking lots hold and protect fiber splitter outputs until needed for service
  • In-hub distribution splicing option incorporates splicing of distribution cables within the cabinet

  • Allows for standardized splitter modules and accessories across all FDH 3000 cabinets
  • Supports diverse splitter module configurations: 1x32, 2x32, 1x16, 1x64, dual 1x16, 1x8, dual 1x8, 1x4, dual 1x4, 1x2, dual 1x2
  • Craft friendly splitter module design: easy to insert and remove without affecting adjacent splitters

Product Classification

Regional Availability North America
Product Type Fiber distribution hub
Product Series FDH 3000
Warranty One year

General Specifications

Access Front and rear door
Color Putty white
Mounting Pad

Dimensions

Height 1238.25 mm | 48.750 in
Width 1220.47 mm | 48.050 in
Depth 497.33 mm | 19.580 in
Enclosure Size Large

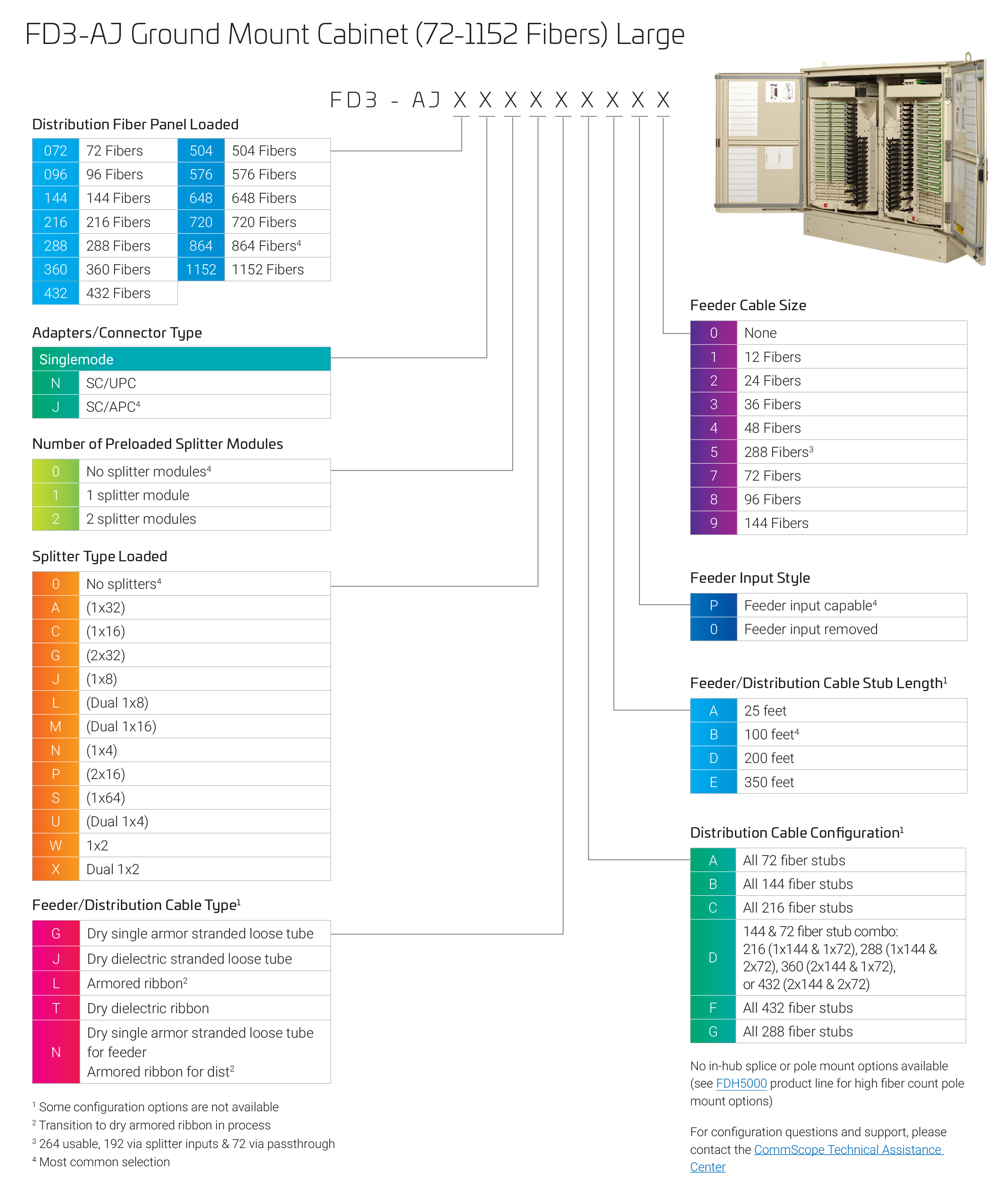

Ordering Tree

Click on image to enlarge.

Material Specifications

Finish Powder coated
Material Type Aluminum

Environmental Specifications

Environmental Space Above ground
Qualification Standards Telcordia GR-3125-CORE | Telcordia GR-487-CORE

Packaging and Weights

Packaging quantity 1
Packaging Type Pallet

Product Classification

Regional Availability North America
Product Type Fiber distribution hub
Product Series FDH 3000
Warranty One year

General Specifications

Access Front and rear door
Color Putty white
Mounting Pad

Dimensions

Height 1238.25 mm | 48.750 in
Width 1220.47 mm | 48.050 in
Depth 497.33 mm | 19.580 in
Enclosure Size Large

Material Specifications

Finish Powder coated
Material Type Aluminum

Environmental Specifications

Environmental Space Above ground
Qualification Standards Telcordia GR-3125-CORE | Telcordia GR-487-CORE

Packaging and Weights

Packaging quantity 1
Packaging Type Pallet
