FIST-GCOG2-6-SERIES

Base Product

Available in:
EMEA

FIST® GC0G2 Fiber Optic Splice Closure, Gel Cable sealing

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FIST-GCOG2-6-SERIES by selecting options

Features and Benefits

The generic gel closure FIST-GCOG2 6-series is the environmentally sealed, fully mechanical enclosure for the fiber management system that provides the functions of splicing and passive component integration inthe external network.

Key features for the FIST-GCOG2 6-series:

Single-ended design
Base and dome are sealed with a clamp and O-ring system
6 round cable ports are provided in a wrap-around block with pre-installed gel profile for cable sealing. This block can be opened and closed repeatedly without the need to remove or replace the gel
The UMS (Universal Mounting System) profiles provide the foundation for mounting combinations of SOSA2 (Splice Only Sub-Assembly) and/or SASA2 (Splitter Array Sub-Assembly) modules, which consists of a modular grooveplate and trays
Compatible with most common cable types: e.g. loose tube, central core, slotted core
Uncut fibers can be stored as single circuits in trays and/or as cable elements in the storage space between the profiles. Storage baskets are available for mass storage of fibers of central core cable constructions
The closure can be used as well in aerial, pedestal and underground (up to 5 meters) environment

Specifications

Product Classification

Regional Availability	EMEA
Product Type	Single-ended, round fiber closure
Product Brand	FIST®
Product Series	FIST-GCOG2

General Specifications

Cable Entry Drop Port Style	Round
Cable Entry Main Port Style	Oval
Cable Ports Quantity, total	6 round ports
Cable Sealing Type	Compressed gel
Closure Sealing Type	Dome-to-base clamp with O-ring
Closure Style	Single-ended
Color	Black
Mounting	Pole \| Strand \| Wall
Network Area Type	Distribution
Splice Tray Included, quantity	0
Splice Tray Type Included	No trays
Splicing Type, Supported	Mass fusion \| Single fusion

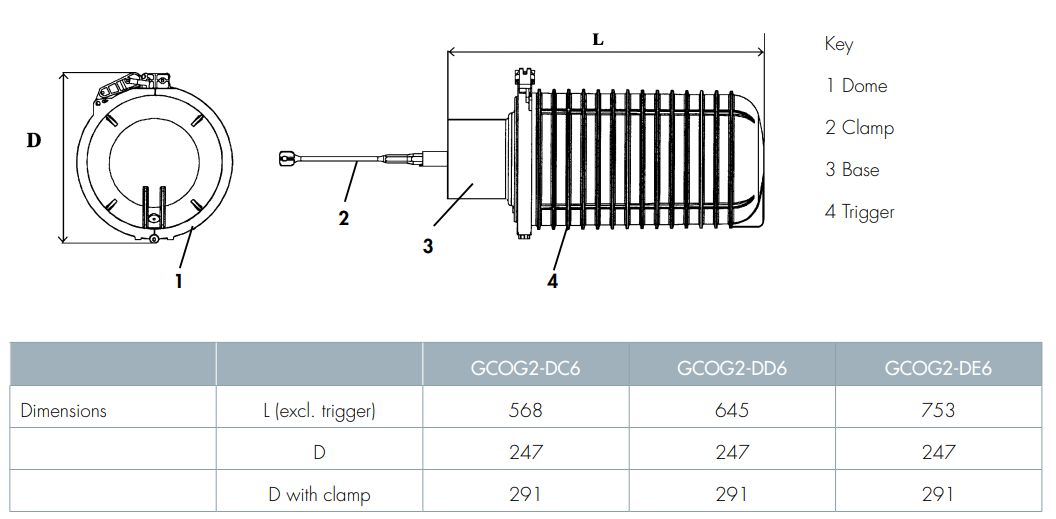

Dimension Drawing

Click on image to enlarge.

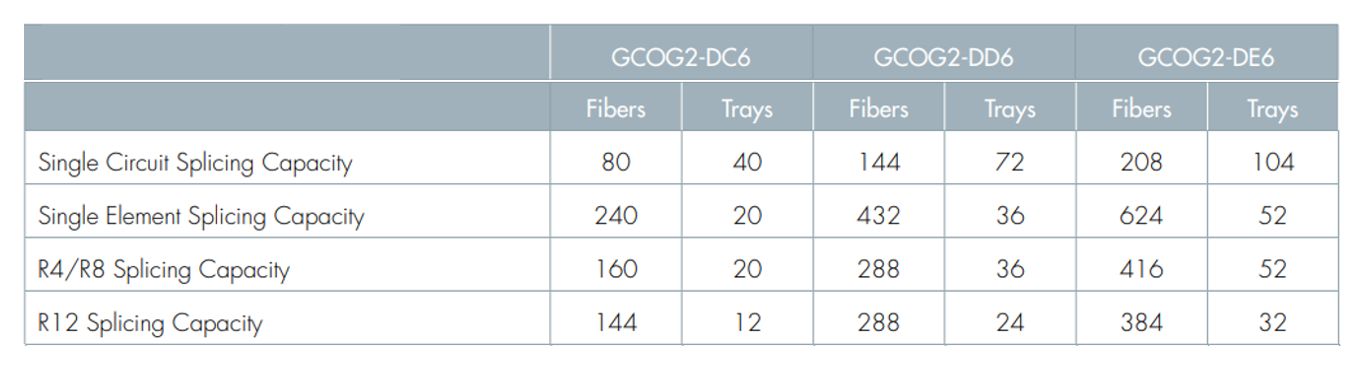

Splicing Configuration

Click on image to enlarge.

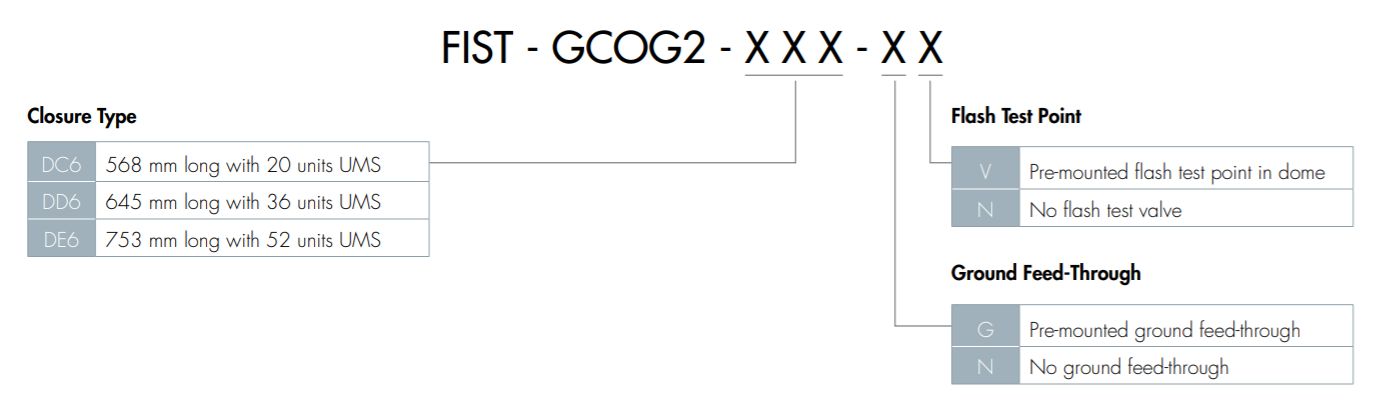

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type

Impact-resistant polymer

Environmental Specifications

Environmental Space	Below ground \| Buried
Qualification Standards	IEC 61300, 5 m waterhead

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
