TENIO-SPLICE-TRAYS

Base Product

Available in:
EMEA
Latin America

TENIO™ Splice Tray

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of TENIO-SPLICE-TRAYS by selecting options

Product	Regional Availability	Product Series	Product Type	Splice Tray Chip Type
760239564 \| TENIO-B6-TRAY-A12 TENIO™ Splice Tray for small closures (B6 size) for up to 12 ANT splice protectors Specifications	Australia/New Zealand \| EMEA \| Latin America	TENIO	Fiber splice tray	ANT
760250710 \| TENIO-C6H-TRAY-RR TENIO™ Rollable Ribbon Splice Tray for large closures (CH6 size) for up to 6 Ribbon splice protectors (72 Rollable ribbon fibers) + 12 single fiber heat shrink splice protectors (SMOUV 45 mm) per tray. Max capacity of 6 Rollable Ribbon trays per closure Specifications	Australia/New Zealand \| EMEA \| Latin America	TENIO	Fiber splice tray	Heat shrink
760250711 \| TENIO-B6-TRAY-RR TENIO™ Rollable Ribbon Splice Tray for Small closures (B6 size) for up to 4 Ribbon splice protectors (48 Rollable ribbon fibers) per tray. Max capacity of 6 Rollable Ribbon trays per closure. Specifications	Australia/New Zealand \| EMEA \| Latin America	TENIO	Fiber splice tray	Heat shrink
CV5889-000 \| TENIO-B6-TRAY-S12 TENIO™ Splice Tray for small closures (B6 size) for up to 12 heat shrink splice protectors (SMOUV 45 mm) Specifications	Australia/New Zealand \| EMEA \| Latin America	TENIO	Fiber splice tray	Heat shrink
CV5895-000 \| TENIO-C6-TRAY-S24 TENIO™ Splice Tray for large closures (C6 size) for up to 24 heat shrink splice protectors (SMOUV 45 mm) Specifications	EMEA \| Latin America	TENIO	Fiber splice tray	Heat shrink
CV5897-000 \| TENIO-C6-TRAY-A24 TENIO™ Splice Tray for large closures (C6 size) for up to 24 ANT splice protectors Specifications	EMEA \| Latin America	TENIO	Fiber splice tray	ANT
EH0460-000 \| TENIO-C6H-TRAY-SLE TENIO™ Splice Tray for large closures (CH6 size) for up to 24 heat shrink splice protectors (SMOUV 45 mm) Specifications	Australia/New Zealand \| EMEA \| Latin America	TENIO	Fiber splice tray	Heat shrink
EH0461-000 \| TENIO-B6-TRAY-PATCH TENIO™ Splice/Patch Tray for holding up to 2 SC duplex or 1 LC quad adapters Specifications	Australia/New Zealand \| EMEA \| Latin America	TENIO	Fiber splice/patch tray

Features and Benefits

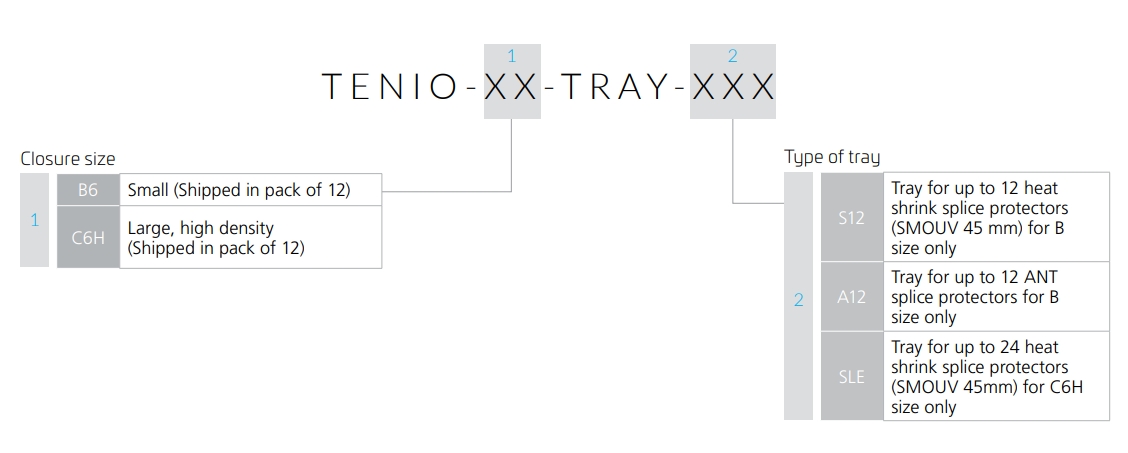

Splice trays
rder separate splice trays to complete unloaded or partially loaded closures.

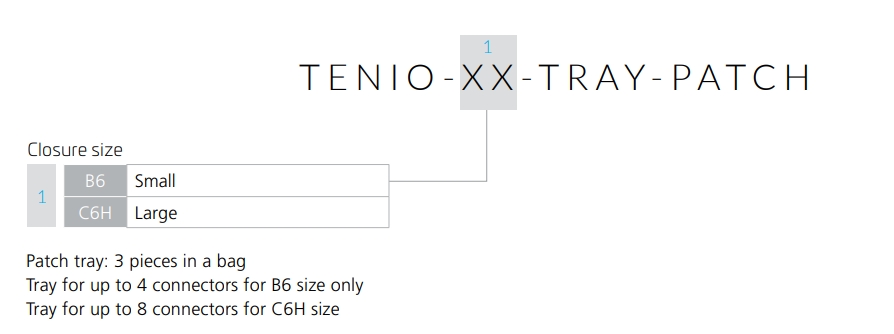

Patch trays
Order these trays for retrofit in TENIO-B6 or TENIO-C6H closures. These trays provide test/monitoring points. Adapters are ordered separately; only adapters without flanges fit in these patch trays.
