M-MN

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

Fiber Optic Cable, Drop, Outdoor Messenger Self-Support, Messenger

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of M-MN by selecting options

Product	Regional Availability	Government Requirements	Portfolio	Product Series	Product Type	Environmental Space	Construction Type	Jacket Color	Total Fiber Count	Jacket Material	Fiber Type	Cable Type	Jacket Marking	Subunit Type
8108269/DB \| M-002-MN-8W-F02NS/109 Fiber outdoor drop cable, LightScope® ZWP Self-Supporting Non-Armored Figure-8, Singlemode G.652.D and G.657.A1, 2 fiber Arid Core construction with 0.109 in messenger, Gel-filled, central loose tube, Feet jacket marking, Black jacket color Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	Build America Buy America (BABA) compliant*	CommScope®	M-MN	Fiber drop cable	Aerial \| self-support	Non-armored	Black	2	PE	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Central loose tube	Feet	Gel-filled
8108270/DB \| M-004-MN-8W-F04NS/109 Fiber outdoor drop cable, LightScope® ZWP Self-Supporting Non-Armored Figure-8e, Singlemode G.652.D and G.657.A1, 4 fiber Arid Core construction with 0.109 in messenger, Gel-filled, central loose tube, Feet jacket marking, Black jacket color Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	Build America Buy America (BABA) compliant*	CommScope®	M-MN	Fiber drop cable	Aerial \| self-support	Non-armored	Black	4	PE	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Central loose tube	Feet	Gel-filled
8108271/DB \| M-006-MN-8W-F06NS/109 Fiber outdoor drop cable, LightScope® ZWP Self-Supporting Non-Armored Figure-8, Singlemode G.652.D and G.657.A1, 6 fiber Arid Core construction with 0.109 in messenger, Gel-filled, central loose tube, Feet jacket marking, Black jacket color Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	Build America Buy America (BABA) compliant*	CommScope®	M-MN	Fiber drop cable	Aerial \| self-support	Non-armored	Black	6	PE	G.652.D and G.657.A1 \| G.652.D and G.657.A1	Central loose tube	Feet	Gel-filled

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber drop cable
Product Series	M-MN

General Specifications

Cable Type	Central loose tube
Construction Type	Non-armored
Subunit Type	Gel-filled
Jacket Color	Black

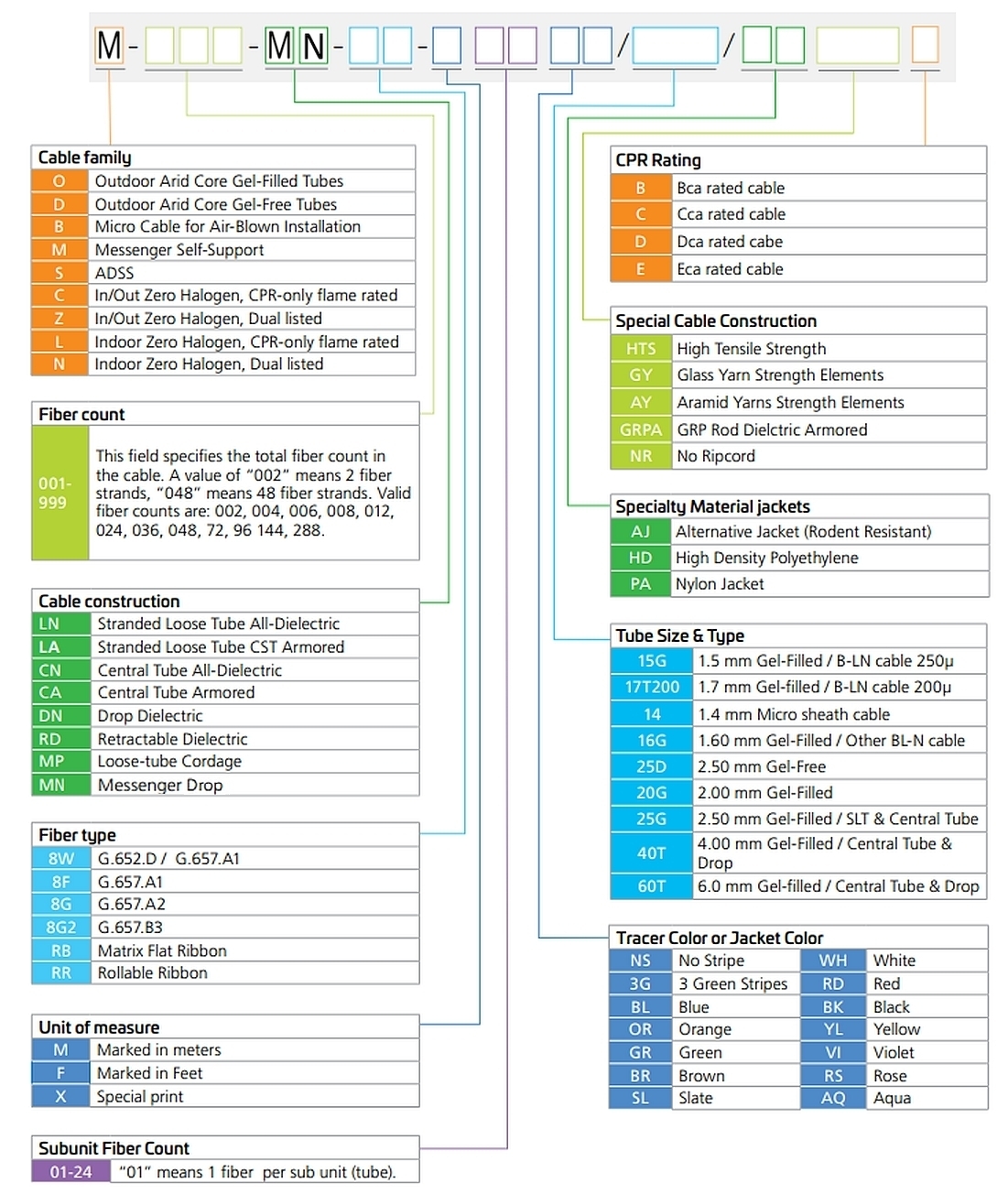

Ordering Tree

Click on image to enlarge.

Material Specifications

Jacket Material

Mechanical Specifications

Compression	10 N/mm \| 57.101 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	35 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7

Environmental Specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-110-717 \| EN 187105 \| Telcordia GR-20
Environmental Space	Aerial, self-support \| Buried
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penentration Test Method	FOTP-82 \| IEC 60794-1 F5

Environmental Test Specifications

Cable Freeze	-2 °C \| 28.400 °F
Cable Freeze Test Method	FOTP-98 \| IEC 60794-1 F15
Drip	70 °C \| 158.000 °F
Drip Test Method	FOTP-81 \| IEC 60794-1 E14
Heat Age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-30 °C to +60 °C (-22 °F to +140 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1
