Z-DN

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

Fiber Optic Cable, Drop, Indoor/Outdoor Zero Halogen, Dual listed, Dielectric

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of Z-DN by selecting options

Product	Regional Availability	Portfolio	Product Series	Product Type	Environmental Space	Construction Type	Jacket Color	Total Fiber Count	Jacket Material	Fiber Type	Cable Type	EN50575 CPR Cable EuroClass Fire Performance	EN50575 CPR Cable EuroClass Smoke Rating	EN50575 CPR Cable EuroClass Droplets Rating	EN50575 CPR Cable EuroClass Acidity Rating	Jacket Marking	Subunit Type
760083303 \| Z-006-DN-8W-F06BK/D Fiber Indoor/Outdoor Drop Cable, TeraSPEED®, Low Smoke Zero Halogen Single Jacket All-Dielectric Arid-Core, 6 fiber, Gel-filled, Singlemode G.652.D and G.657.A1, Feet jacket marking, Black jacket color, Dca flame rating Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	6	Low Smoke Zero Halogen (LSZH)	G.652.D and G.657.A1 \| TeraSPEED® \| OS2 \| OS2	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled
760083329 \| Z-024-DN-8W-F12BK/D Fiber Indoor/Outdoor Drop Cable, TeraSPEED®, Low Smoke Zero Halogen, 24 fiber Single Jacket All-Dielectric Arid-Core, Gel-filled, Singlemode G.652.D and G.657.A1,Feet jacket marking Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	24	Low Smoke Zero Halogen (LSZH)	G.652.D and G.657.A1 \| TeraSPEED® \| OS2 \| OS2	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled
760083360 \| Z-006-DN-5L-F06BK/D Fiber Indoor/Outdoor Drop Cable, LazrSPEED®, Low Smoke Zero Halogen Single Jacket All-Dielectric Arid-Core, 6 fiber, Gel-filled, Multimode OM3, Feet jacket marking, Black jacket color, Dca flame rating Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	6	Low Smoke Zero Halogen (LSZH)	OM3 \| LazrSPEED® 300 \| OM3 \| LazrSPEED® 300	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled
760083378 \| Z-012-DN-5L-F12BK/D Fiber Indoor/Outdoor Drop Cable, LazrSPEED®, Low Smoke Zero Halogen Single Jacket All-Dielectric Arid-Core, 12 fiber, Gel-filled, Multimode OM3, Feet jacket marking, Black jacket color, Dca flame rating Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	12	Low Smoke Zero Halogen (LSZH)	OM3 \| LazrSPEED® 300 \| OM3 \| LazrSPEED® 300	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled
760083386 \| Z-024-DN-5L-F12BK/D Fiber Indoor/Outdoor Drop Cable, LazrSPEED®, Low Smoke Zero Halogen, 24 fiber, Single Jacket All-Dielectric Arid-Core, Gel-filled, Multimode OM3, Feet jacket marking, Black jacket color, Dca flame rating Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	24	Low Smoke Zero Halogen (LSZH)	OM3 \| LazrSPEED® 300 \| OM3 \| LazrSPEED® 300	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled
760096404 \| Z-008-DN-CM-F08BK/8W004/5L004/D Fiber Indoor/Outdoor Drop Cable, TeraSPEED®, Low Smoke Zero Halogen Single Jacket, 8 fiber, All-Dielectric Arid-Core, Gel-filled, Singlemode + Multimode OM3, Feet jacket marking, Black jacket color, Dca flame rating Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	8	Low Smoke Zero Halogen (LSZH)	Composite MM/SM \| G.652.D and G.657.A1 \| TeraSPEED® \| OM3 \| LazrSPEED® 300	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled
760096420 \| Z-012-DN-CM-F12BK/8W004/5L008/D Fiber Indoor/Outdoor Drop Cable, TeraSPEED®, Low Smoke Zero Halogen Single Jacket All-Dielectric Arid-Core, 12 fiber, Gel-filled, Singlemode + Multimode OM3, Feet jacket marking, Black jacket color, Dca flame rating Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	12	Low Smoke Zero Halogen (LSZH)	Composite MM/SM \| G.652.D and G.657.A1 \| TeraSPEED® \| OM3 \| LazrSPEED® 300	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled
760096446 \| Z-018-DN-CM-F12BK/8W006/5L012/D Fiber Indoor/Outdoor Drop Cable, TeraSPEED®, Low Smoke Zero Halogen, 18 fiber, Single Jacket All-Dielectric Arid-Core, Gel-filled, Singlemode + Multimode OM3, Feet jacket marking, Black jacket color, Dca flame rating Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Z-DN	Fiber drop cable	Aerial \| lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser	Non-armored	Black	18	Low Smoke Zero Halogen (LSZH)	Composite MM/SM \| G.652.D and G.657.A1 \| TeraSPEED® \| OM3 \| LazrSPEED® 300	Riser rated low smoke	Dca	s2	d1	a1	Feet	Gel-filled

Features and Benefits

Fiber drop cables are typically used between the fiber terminal and the building or home and available for various indoor or outdoor applications
Fiber drop cables are engineered to withstand the most demanding environmental conditions, including sun, heat, cold, moisture and heavy RF interference
Superior mechanical and optical performance with unmatched stability and quality

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber drop cable
Product Series	Z-DN

General Specifications

Cable Type	Riser rated low smoke
Construction Type	Non-armored
Subunit Type	Gel-filled
Jacket Color	Black

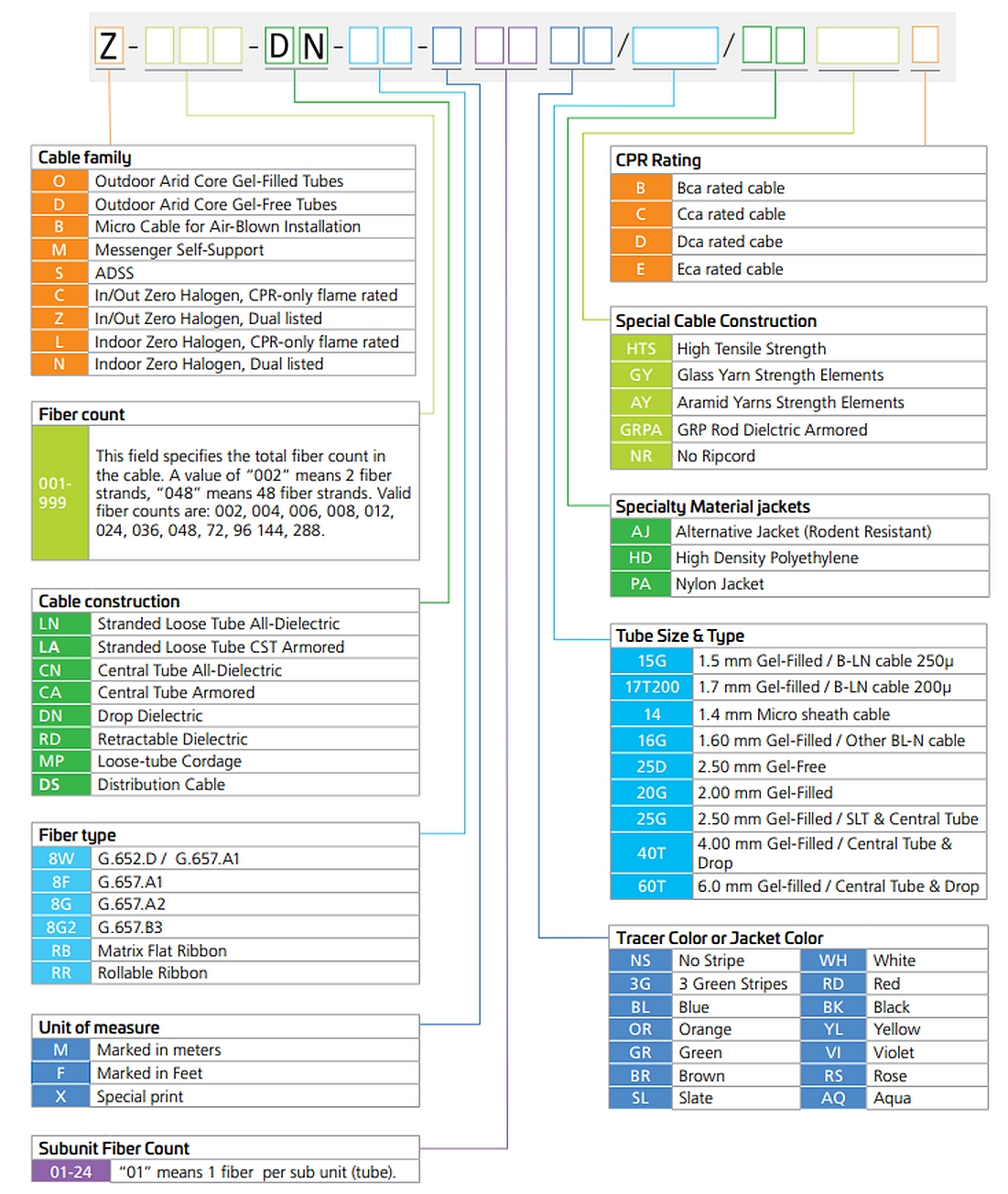

Ordering Tree

Click on image to enlarge.

Material Specifications

Jacket Material

Low Smoke Zero Halogen (LSZH)

Mechanical Specifications

Strain

See long and short term tensile loads

Environmental Specifications

Installation temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Environmental Space	Aerial, lashed \| Buried \| Low Smoke Zero Halogen (LSZH) \| Riser
Jacket UV Resistance	UV stabilized
