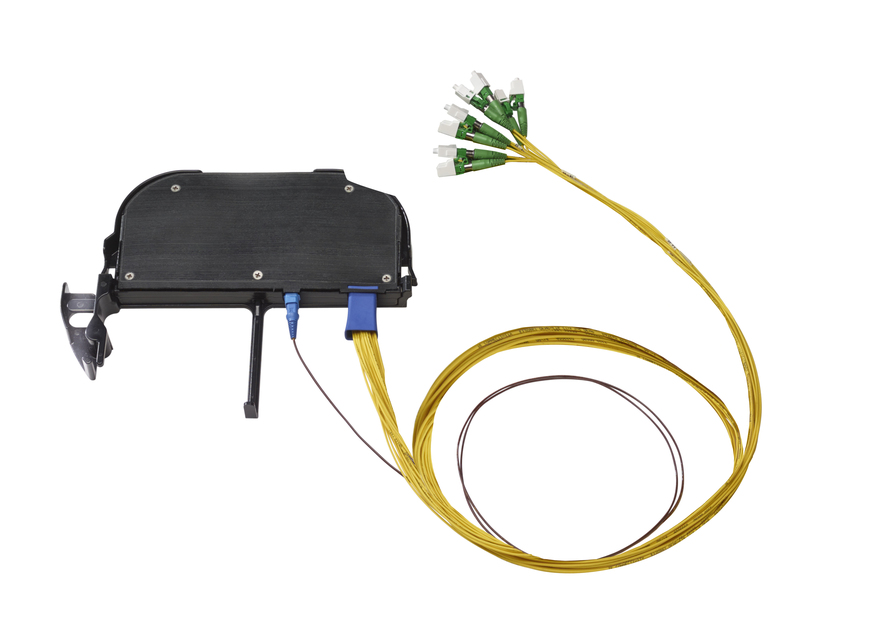

FPS-CMPP2JJJ

FDH 4000/5000, 1X8 splitter, SC/APC

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Features and Benefits

*Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Splitter module
Product Series	FDH 4000 \| FDH 5000 \| FPS
Government Requirements	Build America Buy America (BABA) compliant*

Device Type	Plug-and-play module
Functionality	Splitting
Application	For use in FDH 4000 and 5000 cabinets
Circuits, quantity	1
Distribution Type	1 x 8 splitter
Interface, front	SC/APC
Interface, Input	SC/APC
Interface, Output	SC/APC
Location of Manufacturing	Waived per BABA waiver for BEAD Program
Module Color	Black
Split Ratio	Symmetrical
Splitter, quantity	1

Click on image to enlarge.

Directivity, minimum	60 dB
Polarization Dependent Loss, maximum	0.2 dB
Uniformity, maximum	1 dB
Wavelength Range	1260–1635 nm
Insertion Loss, Splitter, maximum	10.2 dB
Insertion Loss, Splitter, typical	9.7 dB
Return Loss, Splitter, minimum	55 dB
