DB499-K

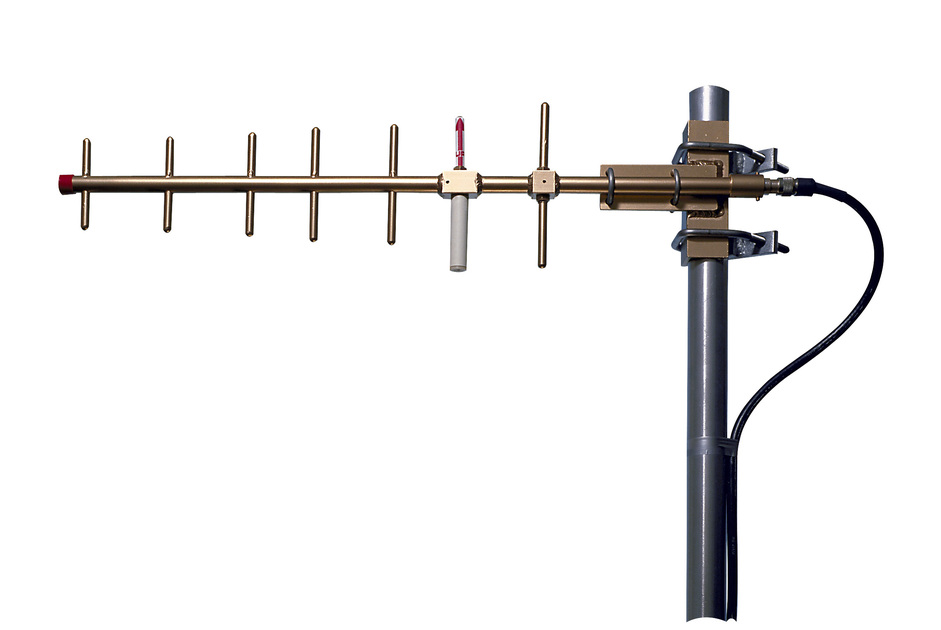

1-port sector (yagi) antenna, 890–960 MHz, 60° HPBW, fixed electrical tilt. Mounting pipe diameter, max. 3".

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Rugged, durable design
Enclosed driven element protects against icing, water penetration, and corrosion
Unique mounts allow vertical or horizontal polarization

Specifications

General Specifications

Antenna Type	Sector
Band	Single band
Color	Silver
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radiator Material	Aluminum
RF Connector Interface	N Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	1
RF Connector Quantity, total	1

Width	137.2 mm \| 5.402 in
Depth	25.4 mm \| 1 in
Length	762 mm \| 30 in
Net Weight, without mounting kit	2.3 kg \| 5.071 lb

Frequency Band, MHz	890–960
Gain, dBi	12.1
Beamwidth, Horizontal, degrees	60
Beamwidth, Vertical, degrees	30
Beam Tilt, degrees	0
Front-to-Back Ratio at 180°, dB	15
VSWR \| Return loss, dB	1.5 \| 14.0
Input Power per Port, maximum, watts	150

Wind Loading @ Velocity, maximum	53.4 N @ 100 mph (12.0 lbf @ 100 mph)
Wind Speed, maximum	201 km/h (125 mph)

Included

V-bolts

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
