EGRV4Q4-65D-R8

22-port sector antenna, 2 x 694-862 MHz (R1), 2 x 880-960 MHz (R2), 2 x 694-960 MHz (R3), and 8 x 1695-2690 MHz (Y1-Y4) 65° HPBW, 8 x 2300-3800 MHz (P1), 90° HPBW, 8 x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Includes 1x 4-Column Array for 2300-3800MHz and calibration port. Column spacing optimized to support Soft Split Beamforming
  • Q4 array uses M-LOC cluster connectors
  • Eight internal RETs control the antenna arrays
  • New aerodynamic endcaps for wind load optimization

General Specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 6
RF Connector Quantity, total 22

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (3) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 60.6 kg | 133.600 lb
TDD Column Spacing 58 mm | 2.283 in

Array Layout

Click on image to enlarge.

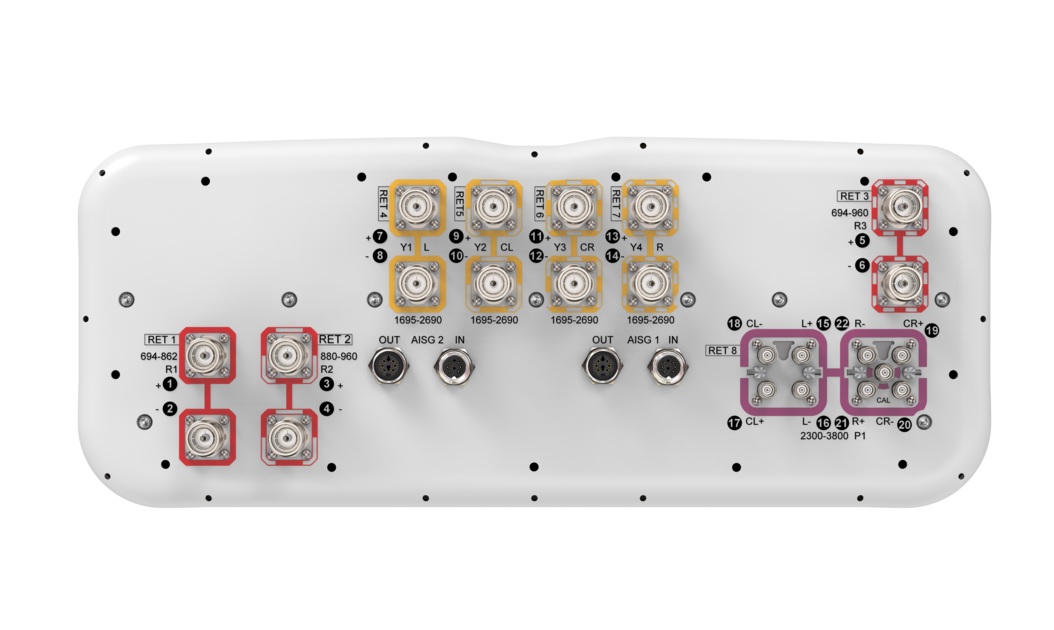

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 16.0 16.4 16.3 16.0 17.2 17.8 15.9 16.6
Beamwidth, Horizontal, degrees 68 63 66 69 63 59 85 63
Beamwidth, Vertical, degrees 8.6 7.4 8.1 7.3 6.5 5.4 6 5.1
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 16 16 16 16 16 14 14
Front-to-Back Ratio at 180°, dB 31 32 31 31 31 31 30 27
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
Isolation, Cross Polarization, dB 28 28 28 25 25 25 23 23
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 250 250 300 200 200 150 75 75

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 18.2 17.1
Beamwidth, Horizontal, degrees 25 75
Beamwidth, Vertical, degrees 5.8 5.1
Front-to-Back Total Power at 180° ± 30°, dB 27 23
USLS (First Lobe), dB 15 14

Electrical Specifications, Envelope Pattern

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 20.5 21.9
Beamwidth, Horizontal at 10 dB, degrees 125 120
Beamwidth, Vertical at 3 dB, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 27 27
USLS (First Lobe), dB 15 15

Electrical Specifications, Service Beam

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Steered 0° Gain, dBi 20.5 21.9
Steered 0° Beamwidth, Horizontal, degrees 24 18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 29
Steered 0° Horizontal Sidelobe, dB 12 13
Steered 30° Gain, dBi 20.0 19.8
Steered 30° Beamwidth, Horizontal, degrees 28 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 29 25

Electrical Specifications, Soft Split

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 19.8
Front-to-Back Total Power at 180° ± 30°, dB 29
Horizontal Sidelobe, dB 19

Mechanical Specifications

Wind Loading @ Velocity, frontal 944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 2874 mm | 113.150 in
Weight, gross 82.2 kg | 181.220 lb

General Specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 6
RF Connector Quantity, total 22

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (3) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 60.6 kg | 133.600 lb
TDD Column Spacing 58 mm | 2.283 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 16.0 16.4 16.3 16.0 17.2 17.8 15.9 16.6
Beamwidth, Horizontal, degrees 68 63 66 69 63 59 85 63
Beamwidth, Vertical, degrees 8.6 7.4 8.1 7.3 6.5 5.4 6 5.1
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 16 16 16 16 16 14 14
Front-to-Back Ratio at 180°, dB 31 32 31 31 31 31 30 27
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
Isolation, Cross Polarization, dB 28 28 28 25 25 25 23 23
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 250 250 300 200 200 150 75 75

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 18.2 17.1
Beamwidth, Horizontal, degrees 25 75
Beamwidth, Vertical, degrees 5.8 5.1
Front-to-Back Total Power at 180° ± 30°, dB 27 23
USLS (First Lobe), dB 15 14

Electrical Specifications, Envelope Pattern

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 20.5 21.9
Beamwidth, Horizontal at 10 dB, degrees 125 120
Beamwidth, Vertical at 3 dB, degrees 5.9 5.1
Front-to-Back Total Power at 180° ± 30°, dB 27 27
USLS (First Lobe), dB 15 15

Electrical Specifications, Service Beam

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Steered 0° Gain, dBi 20.5 21.9
Steered 0° Beamwidth, Horizontal, degrees 24 18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 29
Steered 0° Horizontal Sidelobe, dB 12 13
Steered 30° Gain, dBi 20.0 19.8
Steered 30° Beamwidth, Horizontal, degrees 28 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 29 25

Electrical Specifications, Soft Split

Frequency Band, MHz 694–862 880–960 694–960 1695–1920 1920–2200 2300–2690 2300–2690 3400–3800
Gain, dBi 19.8
Front-to-Back Total Power at 180° ± 30°, dB 29
Horizontal Sidelobe, dB 19

Mechanical Specifications

Wind Loading @ Velocity, frontal 944.0 N @ 150 km/h (212.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 292.0 N @ 150 km/h (65.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,130.0 N @ 150 km/h (254.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 2874 mm | 113.150 in
Weight, gross 82.2 kg | 181.220 lb
Click on image to enlarge.
Click on image to enlarge.

Assembly Drawing

Line drawing
