FFVV-65C-R3-V1

8-port sector antenna, 4x 617-894 and 4x 1695–2690 MHz, 65° HPBW, 3x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Meets -153dBc 3rd order PIM for 1695-2690MHz, using 2x40W carriers

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2437 mm | 95.945 in
Net Weight, without mounting kit 53.8 kg | 118.609 lb

Array Layout

Click on image to enlarge.

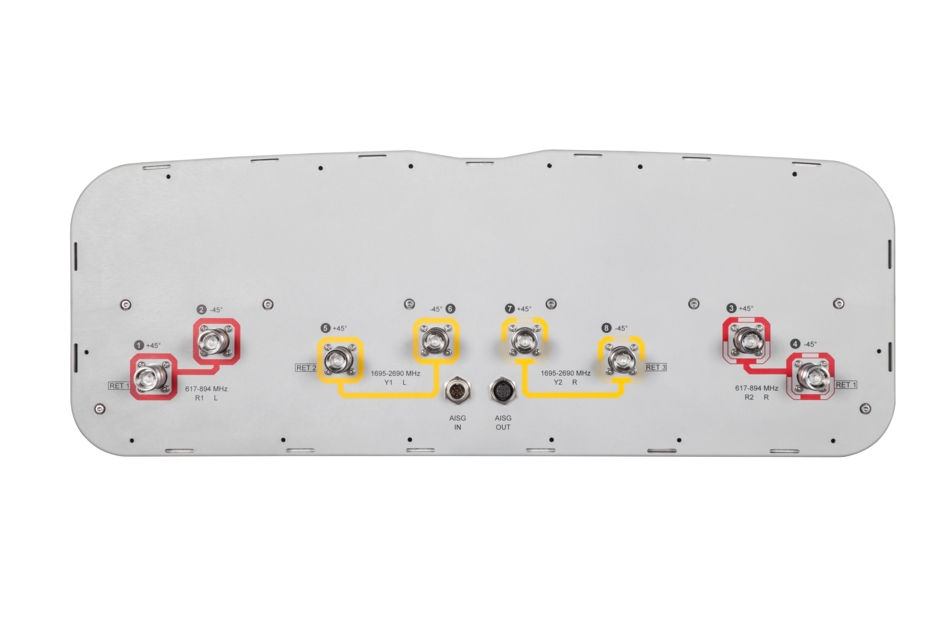

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 617 – 894 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 617–698 698–894 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690
Gain, dBi 16.0 16.3 17.6 18.0 18.6 18.5 18.6
Beamwidth, Horizontal, degrees 65 63 68 65 61 57 61
Beamwidth, Vertical, degrees 10.2 8.5 5.6 5.4 5.1 4.4 4.1
Beam Tilt, degrees 2–13 2–13 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 19 19 20 22 19 18
Front-to-Back Ratio at 180°, dB 30 33 34 38 36 31 32
Front-to-Back Total Power at 180° ± 30°, dB 22 22 28 30 27 26 27
CPR at Boresight, dB 15 15 20 22 19 16 23
CPR at Sector, dB 7 7 6 6 5 6 9
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -153
PIM, 3rd Order, 2 x 40 W, dBc -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 250 250 200 200 200 200 200

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.99 m² | 10.656 ft²
Effective Projective Area (EPA), lateral 0.33 m² | 3.552 ft²
Wind Loading @ Velocity, frontal 1,055.0 N @ 150 km/h (237.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 355.0 N @ 150 km/h (79.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,433.0 N @ 150 km/h (322.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,086.0 N @ 150 km/h (244.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 744 mm | 29.291 in
Depth, packed 346 mm | 13.622 in
Length, packed 2566 mm | 101.024 in
Weight, gross 75 kg | 165.347 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2437 mm | 95.945 in
Net Weight, without mounting kit 53.8 kg | 118.609 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 617 – 894 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 617–698 698–894 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690
Gain, dBi 16.0 16.3 17.6 18.0 18.6 18.5 18.6
Beamwidth, Horizontal, degrees 65 63 68 65 61 57 61
Beamwidth, Vertical, degrees 10.2 8.5 5.6 5.4 5.1 4.4 4.1
Beam Tilt, degrees 2–13 2–13 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 19 19 20 22 19 18
Front-to-Back Ratio at 180°, dB 30 33 34 38 36 31 32
Front-to-Back Total Power at 180° ± 30°, dB 22 22 28 30 27 26 27
CPR at Boresight, dB 15 15 20 22 19 16 23
CPR at Sector, dB 7 7 6 6 5 6 9
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -153
PIM, 3rd Order, 2 x 40 W, dBc -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 250 250 200 200 200 200 200

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.99 m² | 10.656 ft²
Effective Projective Area (EPA), lateral 0.33 m² | 3.552 ft²
Wind Loading @ Velocity, frontal 1,055.0 N @ 150 km/h (237.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 355.0 N @ 150 km/h (79.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,433.0 N @ 150 km/h (322.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,086.0 N @ 150 km/h (244.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 744 mm | 29.291 in
Depth, packed 346 mm | 13.622 in
Length, packed 2566 mm | 101.024 in
Weight, gross 75 kg | 165.347 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
