NNVVSS-360M-F3

12-port quasi-omni antenna, 4x 698-896, 4x1695-2690 and 4x 3100-4000MHz, 360° horizontal beamwidth, Fixed tilt.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Extended length to maximize gain with volume < 3 cu. ft
  • Fixed tilt of 3 degrees for mid band and high band arrays

General Specifications

Antenna Type Small Cell
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material ASA, UV stabilized
Radiator Material Low loss circuit board
Reflector Material Aluminum

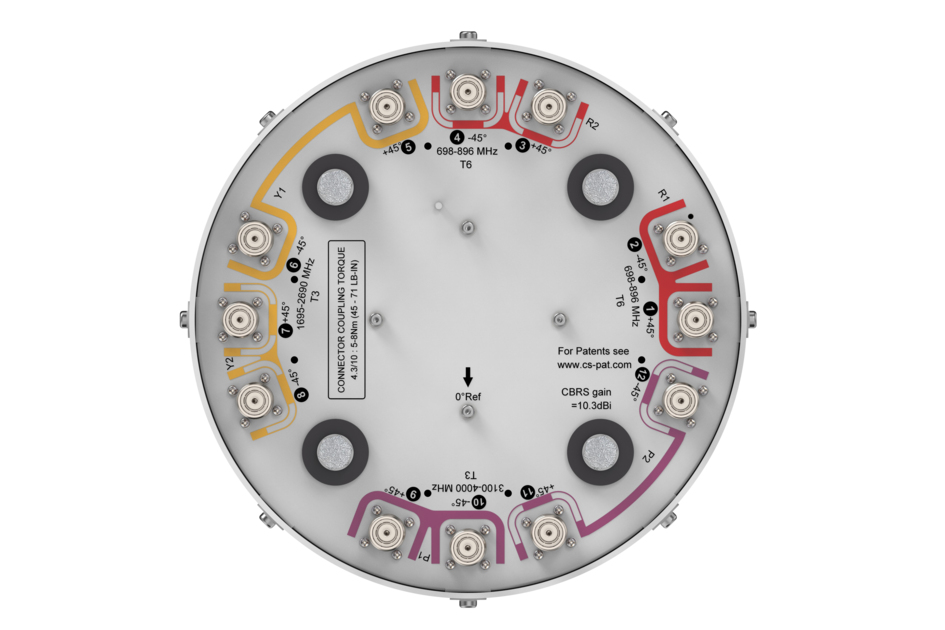

RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Dimensions

Length 1158 mm | 45.591 in
Net Weight, antenna only 16 kg | 35.274 lb
Outer Diameter 305 mm | 12.008 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2690 MHz | 3100 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1920 1920–2180 2300–2690 3100–3550 3550–3700 3700–4000
Gain, dBi 7.1 7.2 8.3 8.9 9.4 10.1 9.8 9.8
Beamwidth, Horizontal, degrees 360 360 360 360 360 360 360 360
Beamwidth, Vertical, degrees 24.1 22.6 16.3 14.1 11.1 10.8 10.1 9.6
Beam Tilt, degrees 6 6 3 3 3 3 3 3
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 150 150 150 150 150 100 100 100

Mechanical Specifications

Wind Loading @ Velocity, frontal 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 427 mm | 16.811 in
Depth, packed 407 mm | 16.024 in
Length, packed 1442 mm | 56.772 in
Weight, gross 20 kg | 44.092 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
