760082503 | RK6-52A

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

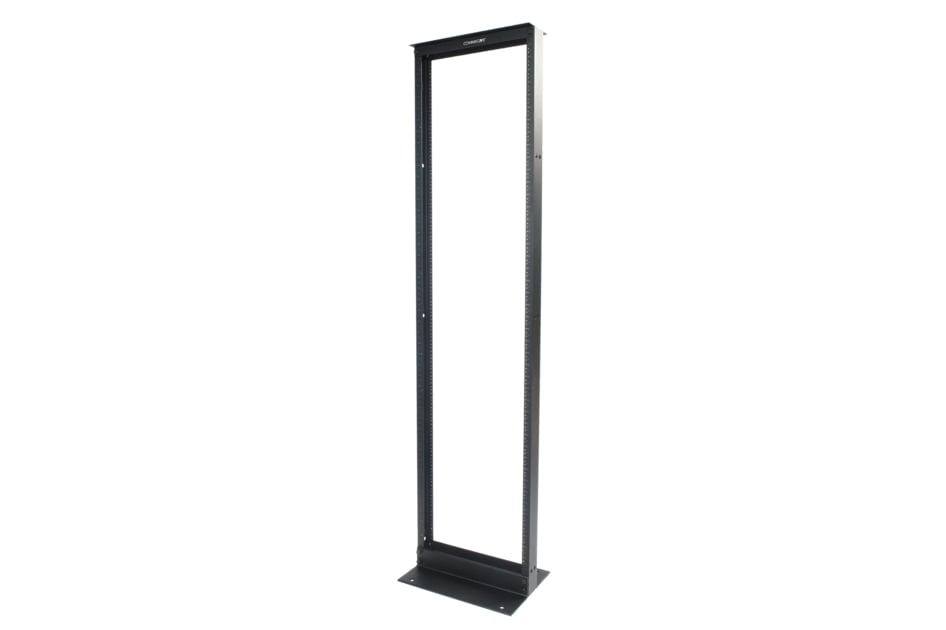

Equipment Rack, 2-Post, 6 in (152 mm) Channel x 8 ft (2438 mm) H - 19 in (482.6 mm) AIu (52U) 12-24 Tapped Rails, Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type 2 post rack

General Specifications

Color Black
Rack Type EIA 19 in
Rack Units 52
Rail Mounting Hole #12-24

Dimensions

Height 2438.4 mm | 96 in
Channel Width 152.4 mm | 6 in
Width 518.16 mm | 20.4 in
Depth 457.2 mm | 18 in
Dimensional Standards EIA-310-E

Material Specifications

Finish Powder-coated, textured
Material Type Aluminum

Mechanical Specifications

Static Load Rating 453.6 kg | 1000.016 lb

Packaging and Weights

Included Forty #12-24 x 1/2 in mounting screws | Instruction sheet | Twelve 3/8 in split lock washers | Twelve 3/8-16 UNC x 1 in hex head bolts | Twelve 3/8-16 hex nuts | Two extruded base angles | Two extruded top angles | Two vertical rack rails
Packaging quantity 1
Packaging Type Flat packed
Weight, net 16.33 kg | 36.001 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
