760084053 | CRR2RRMK
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

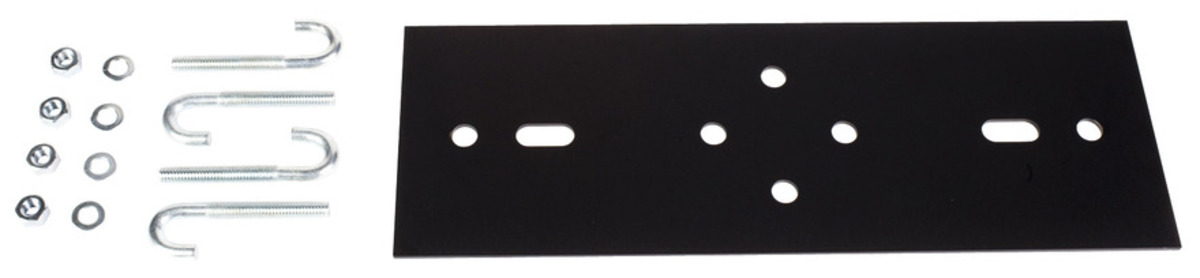

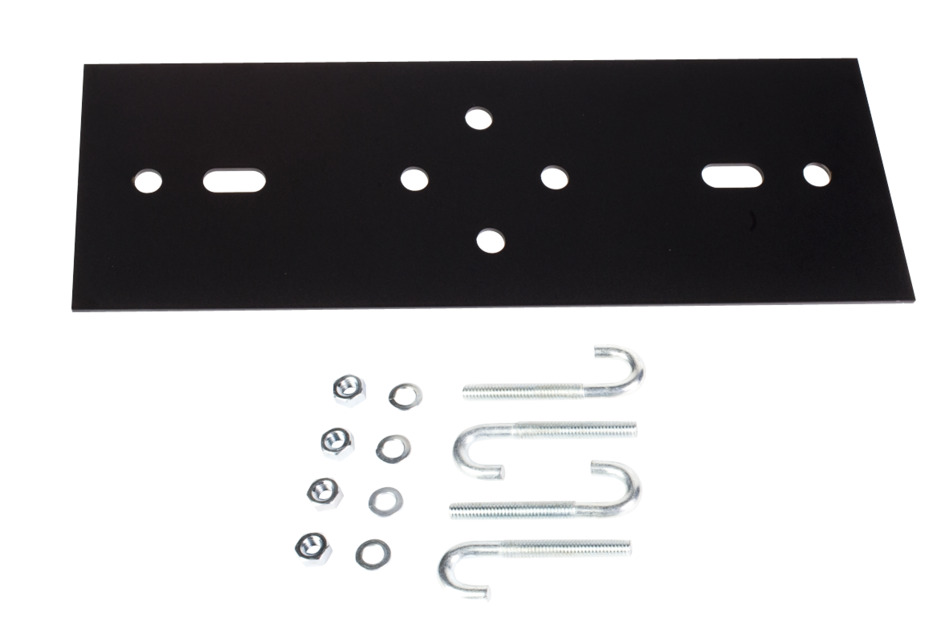

Runway to Rack Mounting Kit, 19 inch (482.6 mm) W, 5.375 inch (136.5 mm) D, black
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Support kit |
General Specifications
| Color | Black |
Dimensions
| Height | 3.302 mm | 0.13 in |
| Width | 482.6 mm | 19 in |
| Depth | 136.652 mm | 5.38 in |
Material Specifications
| Finish | Powder-coated, smooth |
| Material Type | Steel |
Environmental Specifications
| Safety Standard | UL | cUL |
Packaging and Weights
| Included | Four 5/16-18 KEPS hex nuts | Four J-bolts | Instruction sheet | Ladder rack relay mounting plate |
| Packaging quantity | 1 |
| Packaging Type | Flat packed |
| Weight, net | 2.722 kg | 6 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Support kit |
General Specifications
| Color | Black |
Dimensions
| Height | 3.302 mm | 0.13 in |
| Width | 482.6 mm | 19 in |
| Depth | 136.652 mm | 5.38 in |
Material Specifications
| Finish | Powder-coated, smooth |
| Material Type | Steel |
Environmental Specifications
| Safety Standard | UL | cUL |
Packaging and Weights
| Included | Four 5/16-18 KEPS hex nuts | Four J-bolts | Instruction sheet | Ladder rack relay mounting plate |
| Packaging quantity | 1 |
| Packaging Type | Flat packed |
| Weight, net | 2.722 kg | 6 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
