5204002 | P3® 750 CA

  • Available in:
  • North America

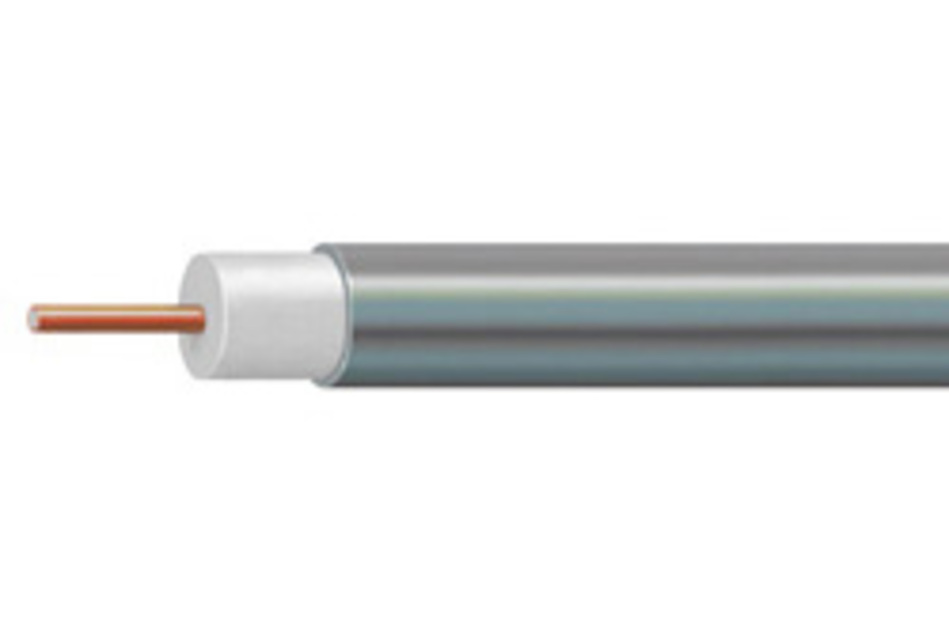

75 Ohm P3® Trunk and Distribution Cable, unjacketed

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Features and Benefits
  • *Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Product Classification

Regional Availability North America
Product Type Coaxial hardline cable
Product Brand P3®
Government Requirements Build America Buy America (BABA) compliant*
Warranty One year

General Specifications

Cable Type 750 Series
Construction Type Swaged
Jacket Color Unjacketed
Location of Manufacturing Catawba, North Carolina
Short Description P3 750 CA

Dimensions

Cable Length 762 m | 2500 ft
Diameter Over Center Conductor, nominal 4.242 mm | 0.167 in
Diameter Over Dielectric, nominal 17.323 mm | 0.682 in
Diameter Over Outer Conductor, nominal 19.05 mm | 0.75 in
Outer Conductor Thickness, nominal 0.864 mm | 0.034 in

Electrical Specifications

Capacitance 50.197 pF/m | 15.3 pF/ft
Capacitance Tolerance ±1.0 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±2 ohm
dc Resistance Note Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal 1.87 ohms/km | 0.57 ohms/kft
dc Resistance, Loop, nominal 2.493 ohms/km | 0.76 ohms/kft
dc Resistance, Outer Conductor, nominal 0.623 ohms/km | 0.19 ohms/kft
Nominal Velocity of Propagation (NVP) 87 %
Operating Frequency Band 5–3000 MHz
Structural Return Loss 24 dB @ 1003–1218 MHz | 24 dB @ 1219–1794 MHz | 30 dB @ 5–1002 MHz
Structural Return Loss, Grade N ≥24 dB @ 1003–1218 MHz | ≥24 dB @ 1219–1794 MHz | ≥30 dB @ 5–1002 MHz

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
5.0 MHz 0.360 0.110
55.0 MHz 1.210 0.370
85.0 MHz 1.510 0.460
204.0 MHz 2.360 0.720
211.0 MHz 2.430 0.740
250.0 MHz 2.660 0.810
300.0 MHz 2.920 0.890
350.0 MHz 3.180 0.970
400.0 MHz 3.440 1.050
450.0 MHz 3.670 1.120
500.0 MHz 3.870 1.180
550.0 MHz 4.070 1.240
600.0 MHz 4.300 1.310
750.0 MHz 4.860 1.480
865.0 MHz 5.280 1.610
1002.0 MHz 5.720 1.740
1218.0 MHz 6.410 1.950
1500.0 MHz 7.300 2.230
1794.0 MHz 8.070 2.460
1800.0 MHz 8.080 2.460
2000.0 MHz 8.570 2.610
2200.0 MHz 9.050 2.760
2500.0 MHz 9.730 2.960
2700.0 MHz 10.160 3.100
3000.0 MHz 10.800 3.290

Material Specifications

Center Conductor Material Copper-clad aluminum
Dielectric Material Foam PE
Jacket Material Unjacketed
Outer Conductor Material Aluminum

Mechanical Specifications

Minimum Bend Radius, standard 228.6 mm | 9 in
Pulling Tension, maximum 306.175 kg | 675 lb

Environmental Specifications

Environmental Space Aerial

Packaging and Weights

Packaging Type Reel
Weight, gross 333.349 kg/km | 224 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Regional Availability North America
Product Type Coaxial hardline cable
Product Brand P3®
Government Requirements Build America Buy America (BABA) compliant*
Warranty One year

General Specifications

Cable Type 750 Series
Construction Type Swaged
Jacket Color Unjacketed
Location of Manufacturing Catawba, North Carolina
Short Description P3 750 CA

Dimensions

Cable Length 762 m | 2500 ft
Diameter Over Center Conductor, nominal 4.242 mm | 0.167 in
Diameter Over Dielectric, nominal 17.323 mm | 0.682 in
Diameter Over Outer Conductor, nominal 19.05 mm | 0.75 in
Outer Conductor Thickness, nominal 0.864 mm | 0.034 in

Electrical Specifications

Capacitance 50.197 pF/m | 15.3 pF/ft
Capacitance Tolerance ±1.0 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±2 ohm
dc Resistance Note Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal 1.87 ohms/km | 0.57 ohms/kft
dc Resistance, Loop, nominal 2.493 ohms/km | 0.76 ohms/kft
dc Resistance, Outer Conductor, nominal 0.623 ohms/km | 0.19 ohms/kft
Nominal Velocity of Propagation (NVP) 87 %
Operating Frequency Band 5–3000 MHz
Structural Return Loss 24 dB @ 1003–1218 MHz | 24 dB @ 1219–1794 MHz | 30 dB @ 5–1002 MHz
Structural Return Loss, Grade N ≥24 dB @ 1003–1218 MHz | ≥24 dB @ 1219–1794 MHz | ≥30 dB @ 5–1002 MHz

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
5.0 MHz 0.360 0.110
55.0 MHz 1.210 0.370
85.0 MHz 1.510 0.460
204.0 MHz 2.360 0.720
211.0 MHz 2.430 0.740
250.0 MHz 2.660 0.810
300.0 MHz 2.920 0.890
350.0 MHz 3.180 0.970
400.0 MHz 3.440 1.050
450.0 MHz 3.670 1.120
500.0 MHz 3.870 1.180
550.0 MHz 4.070 1.240
600.0 MHz 4.300 1.310
750.0 MHz 4.860 1.480
865.0 MHz 5.280 1.610
1002.0 MHz 5.720 1.740
1218.0 MHz 6.410 1.950
1500.0 MHz 7.300 2.230
1794.0 MHz 8.070 2.460
1800.0 MHz 8.080 2.460
2000.0 MHz 8.570 2.610
2200.0 MHz 9.050 2.760
2500.0 MHz 9.730 2.960
2700.0 MHz 10.160 3.100
3000.0 MHz 10.800 3.290

Material Specifications

Center Conductor Material Copper-clad aluminum
Dielectric Material Foam PE
Jacket Material Unjacketed
Outer Conductor Material Aluminum

Mechanical Specifications

Minimum Bend Radius, standard 228.6 mm | 9 in
Pulling Tension, maximum 306.175 kg | 675 lb

Environmental Specifications

Environmental Space Aerial

Packaging and Weights

Packaging Type Reel
Weight, gross 333.349 kg/km | 224 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
