760233361 | P-002-ZC-5G-F16LM

Base Product: P-ZC

Available in:
Asia
Australia/New Zealand
Latin America
Middle East/Africa
North America

Fiber indoor cable, LazrSPEED® 1.6 mm Plenum Zipcord, Multimode OM5, Feet jacket marking, Lime green jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	P-ZC

General Specifications

Cable Type	Cordage
Construction Type	Non-armored
Subunit Type	Gel-free
Jacket Color	Lime green
Jacket Marking	Feet
Total Fiber Count	2

Dimensions

Height Over Jacket	1.7 mm \| 0.067 in
Width Over Jacket	3.5 mm \| 0.138 in

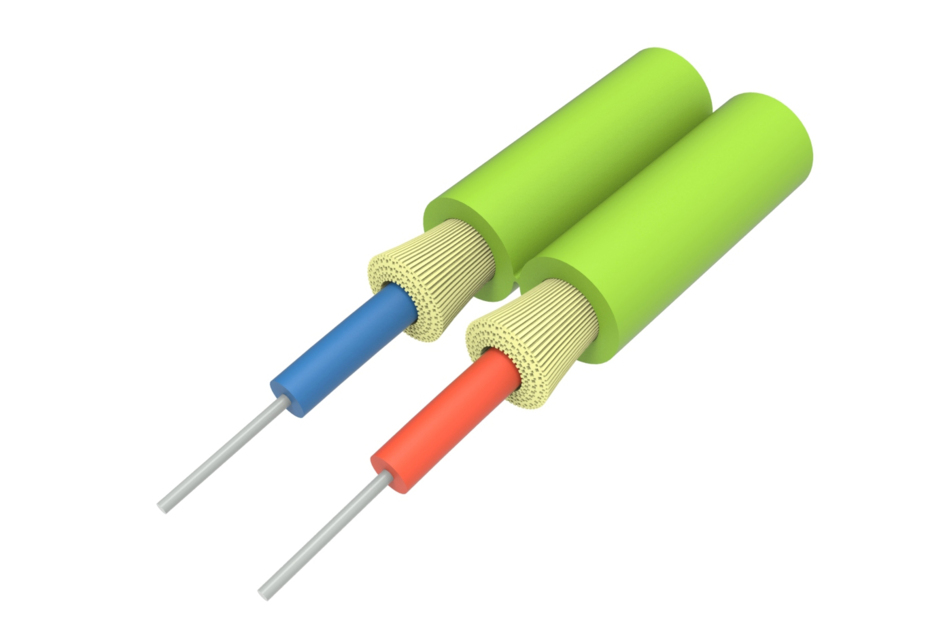

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	38 mm \| 1.496 in
Minimum Bend Radius, unloaded	15 mm \| 0.591 in
Tensile Load, long term, maximum	53 N \| 11.915 lbf
Tensile Load, short term, maximum	178 N \| 40.016 lbf
Compression	10 N/mm \| 57.101 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	300 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	0.74 N-m \| 6.55 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7
Vertical Rise, maximum	500 m \| 1640.42 ft

Optical Specifications

Fiber Type

OM5, LazrSPEED® wideband | OM5, LazrSPEED® wideband

Environmental Specifications

Installation temperature	0 °C to +70 °C (+32 °F to +158 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 \| Telcordia GR-409
Environmental Space	Plenum
Flame Test Listing	NEC OFNP (ETL) and c(ETL)
Flame Test Method	NFPA 130 \| NFPA 262

Environmental Test Specifications

Heat Age	-20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-20 °C to +70 °C (-4 °F to +158 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight

6 kg/km | 4.032 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
