810010118/DB | B-006-CN-8F-M06BK/30G

Base Product: B-CN

  • Available in:
  • Europe

Fiber OSP cable, LightScope® ZWP Blown Single Jacket All-Dielectric Outdoor Central Tube Construction 6 fiber, Singlemode G.657.A1, Gel-filled, Meters jacket marking, Black jacket color

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Europe
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series B-CN

General Specifications

Cable Type Central tube, all dielectric | Microcable
Construction Type Non-armored
Subunit Type Gel-filled
Filler, quantity 0
Inner Jacket Color White
Jacket Color Black
Jacket Marking Meters
Jacket Marking Method Inkjet
Jacket Marking Text COMMSCOPE GB OPTICAL CABLE  BLW 810010118/DB 6x G657A1 SM  HDPE [SERIAL NUMBER] [METER MARK]
Subunit, quantity 1
Fibers per Subunit, quantity 6
Total Fiber Count 6

Dimensions

Buffer Tube/Subunit Diameter 3 mm | 0.118 in
Diameter Over Jacket 3.9 mm | 0.154 in

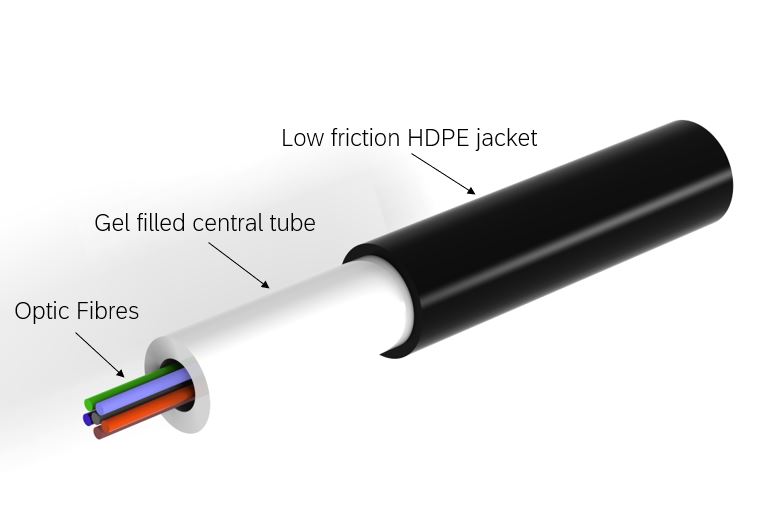

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded 47 mm | 1.850 in
Minimum Bend Radius, storage coils 47 mm | 1.850 in
Minimum Bend Radius, unloaded 47 mm | 1.850 in
Tensile Load, long term, maximum 70 N | 15.737 lbf
Compression 10 N/mm | 57.101 lb/in
Compression Test Method IEC 60794-1-21 E3
Flex 25 cycles
Impact 2 N-m | 17.701 in lb
Impact Test Method IEC 60794-1-21 E4
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1-21 E1
Twist 10 cycles
Twist Test Method IEC 60794-1-21 E7

Optical Specifications

Fiber Type G.657.A1

Environmental Specifications

Installation temperature -10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Storage Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Cable Qualification Standards IEC 60794-1-2 | IEC 60794-5-10
Environmental Space Air-blown, microduct
Jacket UV Resistance UV stabilized
Water Penetration 24 h
Water Penetration Test Method IEC 60794-1 F5

Environmental Test Specifications

Low High Bend Test Method IEC 60794-1-21 E11
Temperature Cycle -20 °C to +60 °C (-4 °F to +140 °F)
Temperature Cycle Test Method IEC 60794-1-22 F1

Packaging and Weights

Cable weight 8.9 kg/km | 5.981 lb/kft

Product Classification

Regional Availability Europe
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series B-CN

General Specifications

Cable Type Central tube, all dielectric | Microcable
Construction Type Non-armored
Subunit Type Gel-filled
Filler, quantity 0
Inner Jacket Color White
Jacket Color Black
Jacket Marking Meters
Jacket Marking Method Inkjet
Jacket Marking Text COMMSCOPE GB OPTICAL CABLE  BLW 810010118/DB 6x G657A1 SM  HDPE [SERIAL NUMBER] [METER MARK]
Subunit, quantity 1
Fibers per Subunit, quantity 6
Total Fiber Count 6

Dimensions

Buffer Tube/Subunit Diameter 3 mm | 0.118 in
Diameter Over Jacket 3.9 mm | 0.154 in

Material Specifications

Jacket Material High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded 47 mm | 1.850 in
Minimum Bend Radius, storage coils 47 mm | 1.850 in
Minimum Bend Radius, unloaded 47 mm | 1.850 in
Tensile Load, long term, maximum 70 N | 15.737 lbf
Compression 10 N/mm | 57.101 lb/in
Compression Test Method IEC 60794-1-21 E3
Flex 25 cycles
Impact 2 N-m | 17.701 in lb
Impact Test Method IEC 60794-1-21 E4
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1-21 E1
Twist 10 cycles
Twist Test Method IEC 60794-1-21 E7

Optical Specifications

Fiber Type G.657.A1

Environmental Specifications

Installation temperature -10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Storage Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Cable Qualification Standards IEC 60794-1-2 | IEC 60794-5-10
Environmental Space Air-blown, microduct
Jacket UV Resistance UV stabilized
Water Penetration 24 h
Water Penetration Test Method IEC 60794-1 F5

Environmental Test Specifications

Low High Bend Test Method IEC 60794-1-21 E11
Temperature Cycle -20 °C to +60 °C (-4 °F to +140 °F)
Temperature Cycle Test Method IEC 60794-1-22 F1

Packaging and Weights

Cable weight 8.9 kg/km | 5.981 lb/kft
