760151464 | LF81-262
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

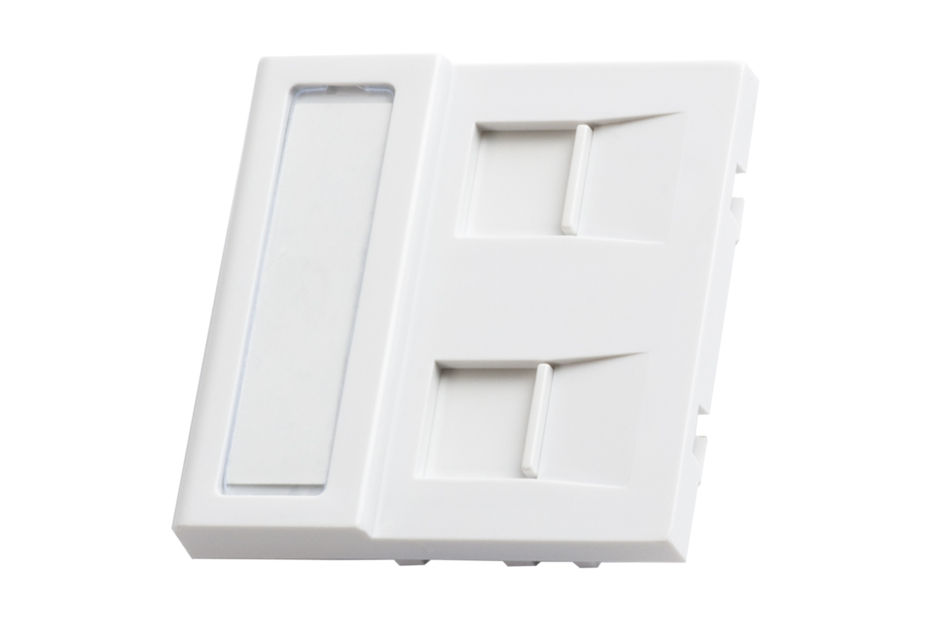

LF81 Shuttered Duplex Faceplate with labeling
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Faceplate kit |
| Product Series | M Series |
| Ordering Note | Available in the United Kingdom |
General Specifications
| Application | Used with M Series modular information outlet |
| Color | White |
| Mounting | Snap-in |
| Total Ports, quantity | 2 |
Dimensions
| Height | 50.038 mm | 1.97 in |
| Width | 50.038 mm | 1.97 in |
| Depth | 15.494 mm | 0.61 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Weight, net | 0.014 kg | 0.03 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Faceplate kit |
| Product Series | M Series |
| Ordering Note | Available in the United Kingdom |
General Specifications
| Application | Used with M Series modular information outlet |
| Color | White |
| Mounting | Snap-in |
| Total Ports, quantity | 2 |
Dimensions
| Height | 50.038 mm | 1.97 in |
| Width | 50.038 mm | 1.97 in |
| Depth | 15.494 mm | 0.61 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Weight, net | 0.014 kg | 0.03 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Documentation & Downloads
Building Information Modeling (BIM) Objects
Engineering Drawing
Product Specification
Visio Stencil
Warranty
Building Information Modeling (BIM) Objects
Engineering Drawing
Product Compliance Documentation
Product Specification
Visio Stencil
Warranty
