CV6986-000 | HFTP-N0-L102-E

Base Product: HFTP-N0

Available in:
EMEA

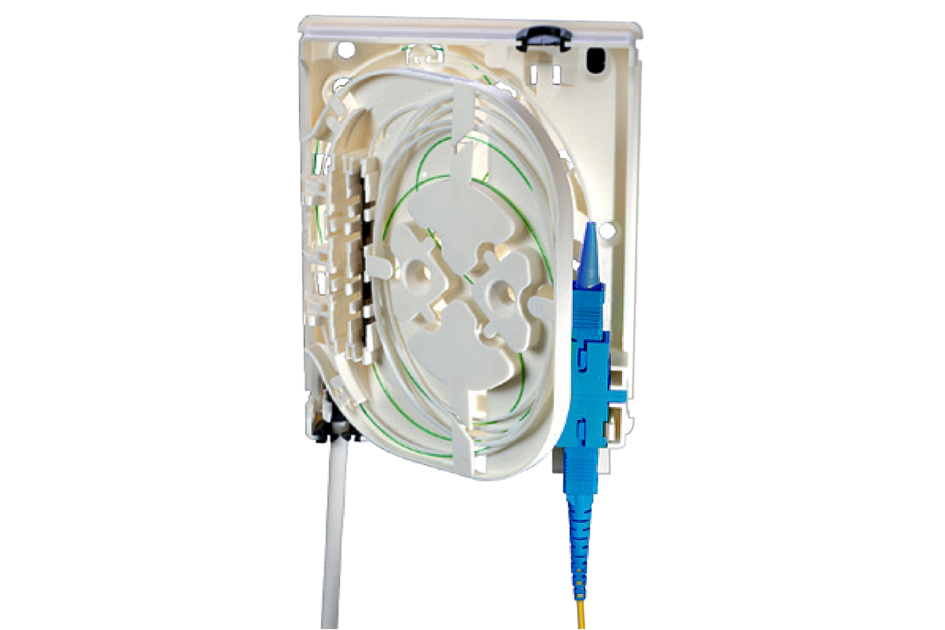

HFTP Customer premises fiber wall outlet, LC/UPC, no pigtails, two duplex adapters

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Compact fiber wall outlet for use at the final fiber termination point in the customer premises
Can be wall mounted and mounted on wall boxes with fixation points of 60mm
Direct termination with field installable connectors
Laser safe with in-built individual shutters

Specifications

Product Classification

Regional Availability	EMEA
Product Type	Fiber wall outlet
Product Series	HFTP
Minimum Order Quantity	300

General Specifications

Color	White
Cover Type	Screw-on
Interface Type	LC/UPC
Mounting	Wall mount
Total Ports, quantity	2

Dimensions

Height	105.41 mm \| 4.15 in
Width	82.55 mm \| 3.25 in
Depth	23.876 mm \| 0.94 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type

LSZH thermoplastic

Optical Specifications

Fiber Mode

Singlemode

Environmental Specifications

Storage Temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Relative Humidity	Up to 93%, non-condensing
Environmental Space	Indoor

Packaging and Weights

Packaging quantity

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
