760254557 | SMB-2P-448-PLENUM

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

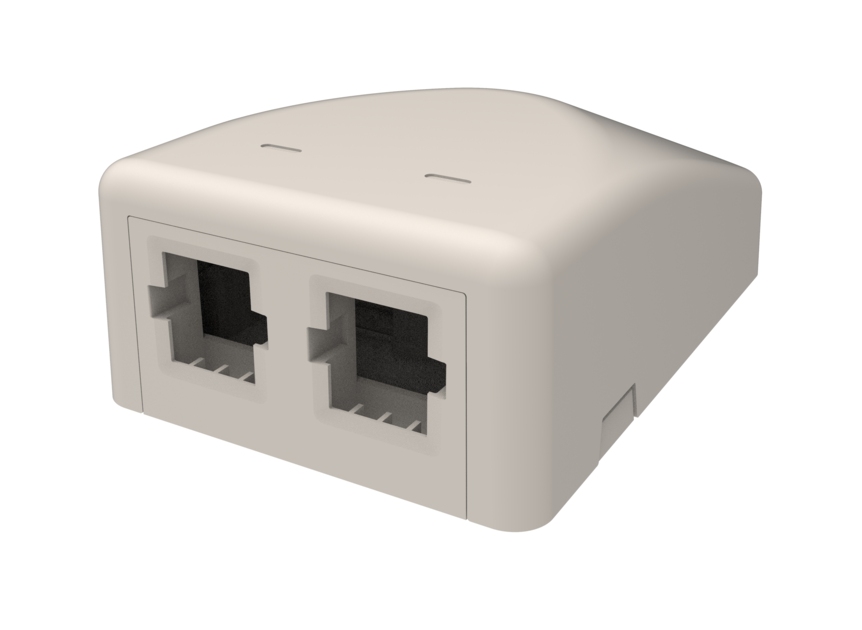

Surface Mount Box, plenum,universal, two ports, light almond

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount box

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets
Color Light almond
Mounting Surface
Outlet Orientation Flat
Port Marking Type Icon
Total Ports, quantity 2

Dimensions

Height 37.6 mm | 1.480 in
Width 72.9 mm | 2.870 in
Depth 101.8 mm | 4.008 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Environmental Space Indoor | Plenum
Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1
Weight, net 0.060 kg | 0.132 lb

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount box

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets
Color Light almond
Mounting Surface
Outlet Orientation Flat
Port Marking Type Icon
Total Ports, quantity 2

Dimensions

Height 37.6 mm | 1.480 in
Width 72.9 mm | 2.870 in
Depth 101.8 mm | 4.008 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Environmental Space Indoor | Plenum
Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1
Weight, net 0.060 kg | 0.132 lb
