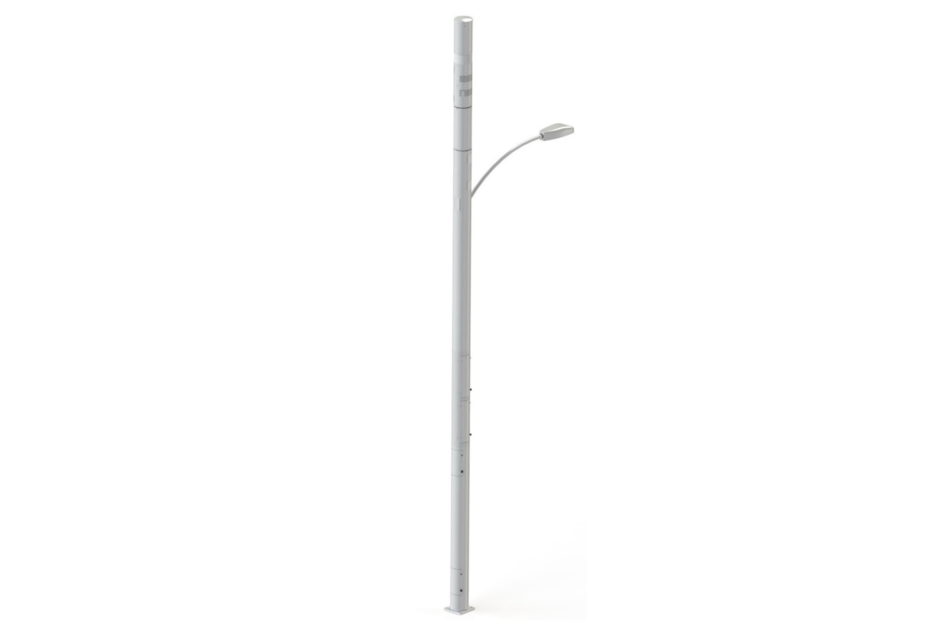

760242715 | 12" Straight Integrated Pole 4G/5G

Straight 12inch diameter, Integrated 4G/5G capable, Concealment Pole, to house and conceal four low-power radios and any other wireless infrastructure equipment inside pole modules.

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of 760242715 | 12" Straight Integrated Pole 4G/5G by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Radio Compatibility Antenna Mounting Enclosure Color Total AGL of 4G Antenna Power Option

Part Number	Radio Compatibility	Antenna Mounting	Enclosure Color	Total AGL of 4G Antenna	Power Option
No configured items found.

Features and Benefits

Available After Market Kits, ordered separately:
-860668762- AMK-001 for mounting Ericsson 4435 Radio

CommScope Cap H Requires additional Radio Module, ordered separately:
-MTM1029-2000-xx Cap H Radio Module for 12” Integrated Poles

Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
Includes everything needed for a low-power 4G/5G outdoor small cell site
Up to 4 low power radios, integrated AC load center/OVP and Disconnect , PoleTop concealment module for LAA/DBRS radio mounting

Specifications

Product Classification

Portfolio	CommScope®
Product Type	Integrated pole
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antenna Compatibility, CommScope	CommScope Canister Antennas
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER
Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Faux Concrete \| Green (RAL 6005) \| Metallic Silver \| White (RAL 9010)
Compatible Foundation Type	Poured Concrete \| Pre-Cast Concrete
Compatible Smart Devices	Cameras \| Digital Signage \| Emergency Call Station \| Environmental Monitoring \| Security Lighting \| WIFI
Cooling	Passive Cooling
Radio Compatibility, CommScope	CAP H
Radio Compatibility, Ericsson	(3) 2205/2208 (Pole Top) \| (4) 2203 (radio concealment module) \| 1281 \| 4435 \| 6701 \| 6705
Radio Compatibility, Nokia	(2) Airscale Micro Radios - LAA & CBRS (Pole Top) \| (2) Airscale micro radios – (radio concealment module) \| AHIA \| AHIB \| AZRB \| Airscale micro
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| RT2201-46A \| RT4401-48A
Radios Included	None

Dimensions

Height Note	5.5 ft tall Radio Concealment Module \| 8 ft tall Power Module Base
Pole Height Options	6.096 m \| 20 ft \| 7.62 m \| 25 ft \| 9.144 m \| 30 ft \| 10.668 m \| 35 ft \| 12.192 m \| 40 ft
Depth	325.12 mm \| 12.8 in
Depth Note	Round
Pole Diameter	325.12 mm \| 12.8 in

Electrical Specifications

Power/Fiber Input

AC load center with OVP and disconnect

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Steel

Environmental Specifications

Thermal Compliance

GR-487
