SSC-760236966E1 | 12 in Pole Top for Ericsson

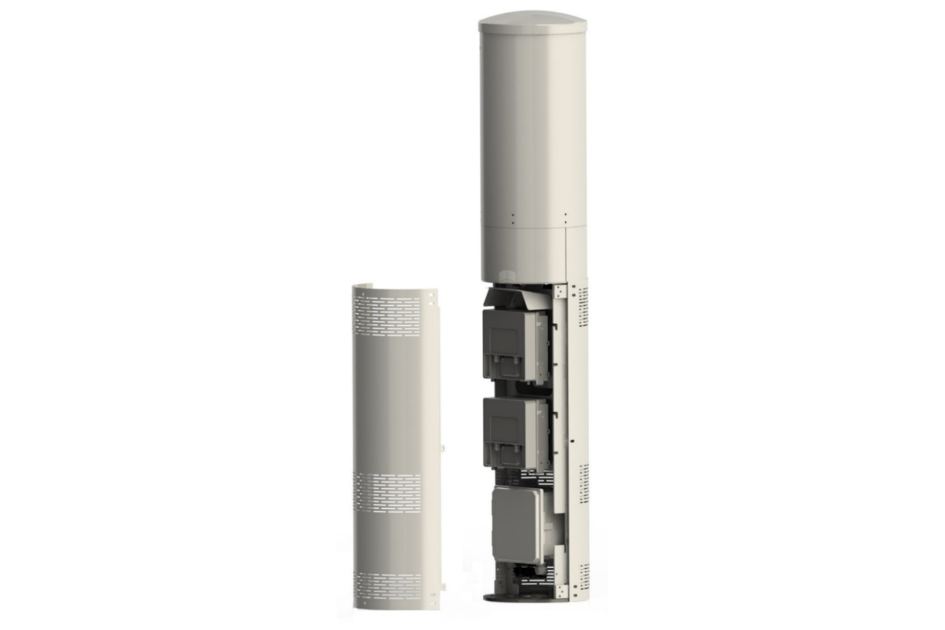

Top of Pole 12in Dia Concealment Enclosure for up to four Ericsson 220x/440x/4435 radios and Power Distribution or Diplexer

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of SSC-760236966E1 | 12 in Pole Top for Ericsson by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Antenna Compatibility Enclosure Color

Part Number	Antenna Compatibility	Enclosure Color
No configured items found.

Features and Benefits

Pole Top Concealment that can accommodate most antenna manufacturers antennas. Please reach out to your CommScope Representative for exact model number.

Additional Configurations available utilizing the below kits:
-860664822-AMK-001 PTS power distribution (replaces Raycap)
-860664822-AMK-002 (1) 4435 radio,raycap,(2) 220x/440x radios

-Supports "V4S4SSP-360S-F2" and "NNV4SSP-360S-F2" antenna with separately ordered "860664552" bracket

Mounts directly to CommScope poles with no additional mounting materials. Mounts to other wood and metal poles with separately purchased mounts.

Enclosure for holding up to 4 metro cell radios directly below a multiband canister antenna
Orderable to mount multi-band and multi-port antennas from multiple antenna vendors
Variable pole diameter mounting kits available to mount to existing structures
Matching light pole or monopole options available

Specifications

Product Classification

Portfolio	CommScope®
Product Type	Pole top
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antenna Compatibility, CommScope	CommScope Canister Antennas
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| DK \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER
Antennas Included	None
Color Options	Antique Bronze (SRSL 45893) \| Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Fairfax Brown (SW 2856) \| Faux Concrete \| Federal Park Brown \| Green (RAL 6005) \| Light Gray (RAL 7035) \| Metallic Silver \| Signal Black (RAL 9004) \| White (RAL 9010)
Cooling	Passive Cooling
Mounting Options	Non-tapered poles \| Tapered poles \| Wood poles
Radio Compatibility, Ericsson	220x \| 440x \| 4435 \| Diplexer \| Power Distribution
Radios Included	None

Dimensions

Height	914.400 mm \| 36 in
Width	304.8 mm \| 12 in
Depth	304.8 mm \| 12 in
Mounting Bolt Circle Diameter	142.748 mm \| 5.62 in \| 241.3 mm \| 9.5 in

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Aluminum \| Steel

Environmental Specifications

Thermal Compliance

GR-487

Packaging and Weights

Volume	0.067 m³ \| 2.36 ft³
Weight (unloaded)	26.308 kg \| 58 lb
