UGBKIT-0212-T

Base Product: GROUNDING-BUSS-SERIES

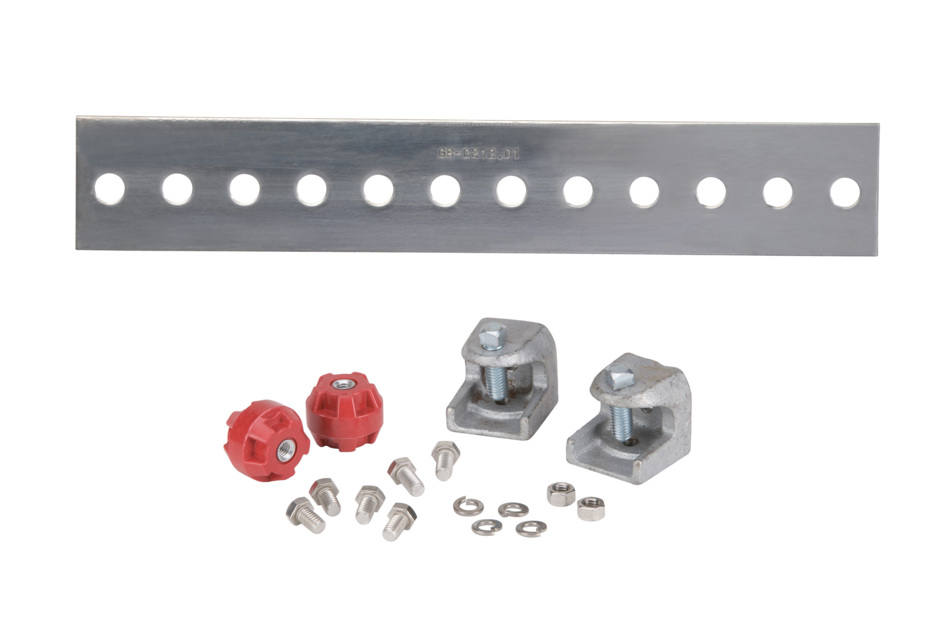

Tinned Copper Ground Buss Bar, 1/4 in x 2 in x 12 in (6.4 mm x 50.8 mm x 304.8 mm)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Grounding bar
Product Brand HELIAX®
Ordering Note CommScope® non-standard product

Dimensions

Height 50.8 mm | 2 in
Length 304.8 mm | 12 in
Material Thickness 6.35 mm | 0.25 in
Hole Size 7/16 in
Hole Distance, center to center 25.4 mm | 1 in

Material Specifications

Material Type Tinned copper

Packaging and Weights

Height, packed 170.18 mm | 6.7 in
Width, packed 129.54 mm | 5.1 in
Length, packed 99.06 mm | 3.9 in

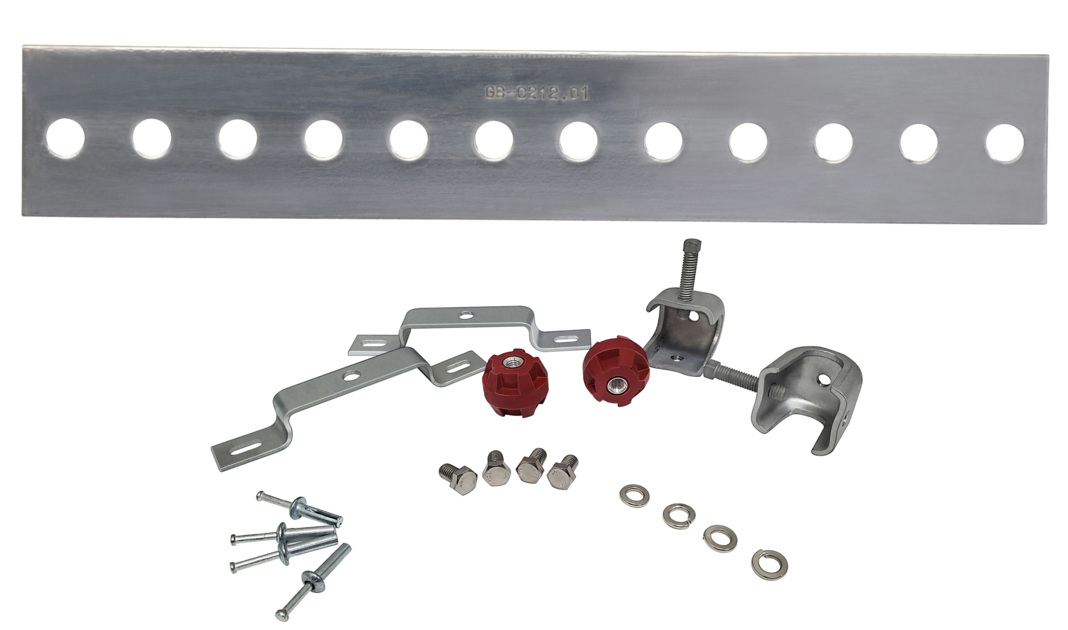

Included Galvanized angle adapter | Grounding bar | Insulators | Mounting brackets | Universal hardware
Packaging quantity 1
Weight, gross 0.44 kg | 0.97 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Product Type Grounding bar
Product Brand HELIAX®
Ordering Note CommScope® non-standard product

Dimensions

Height 50.8 mm | 2 in
Length 304.8 mm | 12 in
Material Thickness 6.35 mm | 0.25 in
Hole Size 7/16 in
Hole Distance, center to center 25.4 mm | 1 in

Material Specifications

Material Type Tinned copper

Packaging and Weights

Height, packed 170.18 mm | 6.7 in
Width, packed 129.54 mm | 5.1 in
Length, packed 99.06 mm | 3.9 in
Included Galvanized angle adapter | Grounding bar | Insulators | Mounting brackets | Universal hardware
Packaging quantity 1
Weight, gross 0.44 kg | 0.97 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
