EQ-P1520-EP-LP-003
Base Product: HEAVY-DUTY-PLATFORMS

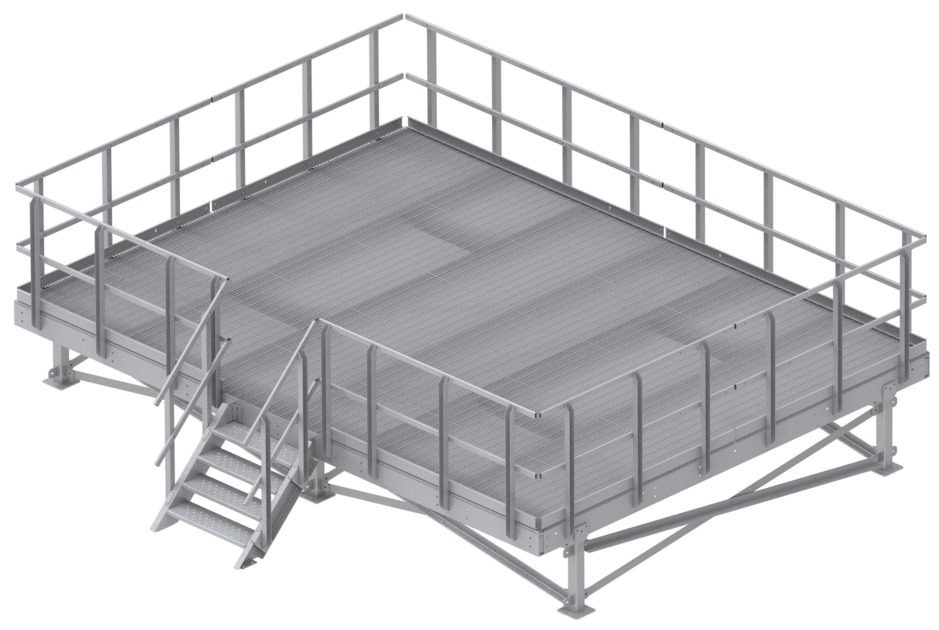

Elevated Equipment Platform, 15 ft x 20 ft with Stairs and Handrail plus 3 foot Elevation Kit
Configure Product Variants
Product Variants
Configure and display product variants of EQ-P1520-EP-LP-003 by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Platform Height | ||
|---|---|---|---|
| No configured items found. | |||
Specifications
Product Classification
| Product Type | Equipment platform system |
General Specifications
| Legs, quantity | 10 |
Dimensions
| Width | 6096 mm | 240 in |
| Length | 4572.000 mm | 180 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and Weights
| Included | Frame | Grating | Hardware | Legs | Rail | Steps |
| Packaging quantity | 1 |
| Weight, net | 2908.6 kg | 6412.358 lb |
Product Classification
| Product Type | Equipment platform system |
General Specifications
| Legs, quantity | 10 |
Dimensions
| Width | 6096 mm | 240 in |
| Length | 4572.000 mm | 180 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and Weights
| Included | Frame | Grating | Hardware | Legs | Rail | Steps |
| Packaging quantity | 1 |
| Weight, net | 2908.6 kg | 6412.358 lb |
