SRC9-U5A101BN001-US

Base Product: SRC

  • Available in:
  • Asia
  • EMEA
  • Latin America
  • North America

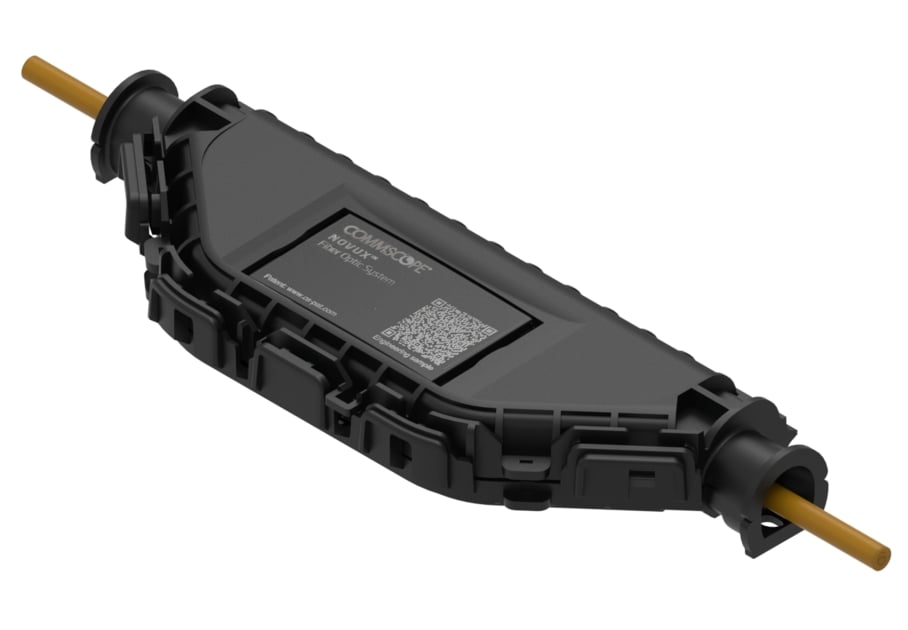

NOVUX™ Specialty Range Closure 10, splice only, no adapters, no splitters, Stranded (4F) splice holder, Ribbon (12F) splice holder, TelSplice connector, black, 2x CR cable retention clip, Build America Buy America (BABA)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
BABA-coming-soon
Build America Buy America (BABA)*

BABA Compliant Product coming soon

Broadband for Everyone Program

Features and Benefits
  • Modern drop solution offering providers the agility and flexibility to use it in last-mile fiber network applications, both above and below ground
  • Protected from harsh conditions by CommScope’s Octopus gel sealing technology
  • Agnostic to connectivity technologies: splice, connector, field-installable connector for agility and flexibility
  • Identification plate for either QR code or customer logo
  • QR code and CommScope cTrak® app for one-click access to all product information
  • *CommScope intends to release this product at a future date. At such time, this product will comply with the requirements of the Build America, Buy America Act and/or applicable waivers. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Regional Availability Note Contact your local CommScope representative for specific availability
Product Type Single-ended, rectangular fiber closure
Product Brand NOVUX™
Product Series SRC10
Government Requirements Build America Buy America (BABA) coming soon*

General Specifications

Cable Capacity, Drop 2 Flat 8.0 x 4.5 mm (0.30 x 0.17 in) | 2 Round 2–6.2 mm (0.08–0.24 in)
Cable Ports Quantity, total 2 round ports
Cable Sealing Type Compressed gel
Cable Termination Attachments, quantity 2
Closure Sealing Type Hinged with latch
Closure Style In-line
Color Black
Location of Manufacturing Coming soon
Mounting Handhole | Partially buried | Pedestal | Wall/Pole Mount, mounting kit included
Network Area Type Drop
Port, quantity 2
Splice Tray Included, quantity 1
Splicing Capacity, Mass Fusion, maximum 12
Splicing Capacity, maximum 4
Splicing Capacity, Single Fusion, maximum 4
Splicing Type, Supported Single fusion
Splitter Type No splitter

Dimensions

Width 76 mm | 2.992 in
Depth 26 mm | 1.024 in
Length 210 mm | 8.268 in
Cable Entry Drop Port Diameter 6 mm ( 0.24 in) mm

Material Specifications

Material Type Impact-resistant polymer

Optical Specifications

Fiber Type G.657.A1 | G.657.A2 | G.657.B3

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Above ground | Below ground | Direct burial
Qualification Standards IEC 60529, IP68 + 1 m waterhead | IEC 61753-1, category G
UV Resistance UV stabilized

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton
Weight, net 0.157 kg | 0.346 lb

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Regional Availability Note Contact your local CommScope representative for specific availability
Product Type Single-ended, rectangular fiber closure
Product Brand NOVUX™
Product Series SRC10
Government Requirements Build America Buy America (BABA) coming soon*

General Specifications

Cable Capacity, Drop 2 Flat 8.0 x 4.5 mm (0.30 x 0.17 in) | 2 Round 2–6.2 mm (0.08–0.24 in)
Cable Ports Quantity, total 2 round ports
Cable Sealing Type Compressed gel
Cable Termination Attachments, quantity 2
Closure Sealing Type Hinged with latch
Closure Style In-line
Color Black
Location of Manufacturing Coming soon
Mounting Handhole | Partially buried | Pedestal | Wall/Pole Mount, mounting kit included
Network Area Type Drop
Port, quantity 2
Splice Tray Included, quantity 1
Splicing Capacity, Mass Fusion, maximum 12
Splicing Capacity, maximum 4
Splicing Capacity, Single Fusion, maximum 4
Splicing Type, Supported Single fusion
Splitter Type No splitter

Dimensions

Width 76 mm | 2.992 in
Depth 26 mm | 1.024 in
Length 210 mm | 8.268 in
Cable Entry Drop Port Diameter 6 mm ( 0.24 in) mm

Material Specifications

Material Type Impact-resistant polymer

Optical Specifications

Fiber Type G.657.A1 | G.657.A2 | G.657.B3

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Above ground | Below ground | Direct burial
Qualification Standards IEC 60529, IP68 + 1 m waterhead | IEC 61753-1, category G
UV Resistance UV stabilized

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton
Weight, net 0.157 kg | 0.346 lb
